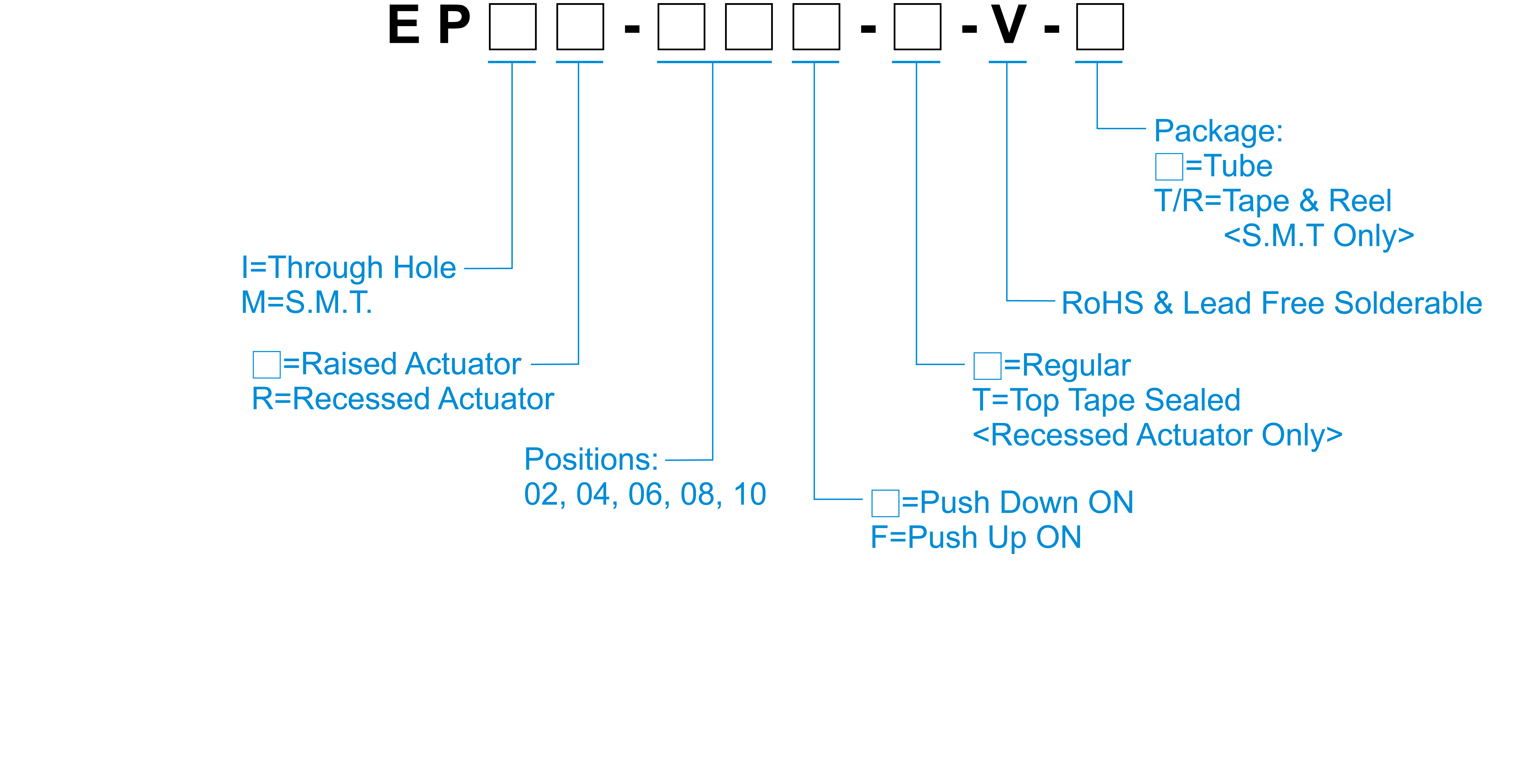

How to Order
Specification
| Contact Rating | 25mA, 24V DC |
|---|---|
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 500V DC |
| Dielectric Strength | 500V AC / 1 minute |
| Operating Force | 800gf Max. |
| Travel | 20ﾟ |
| Operating Life | 2,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |

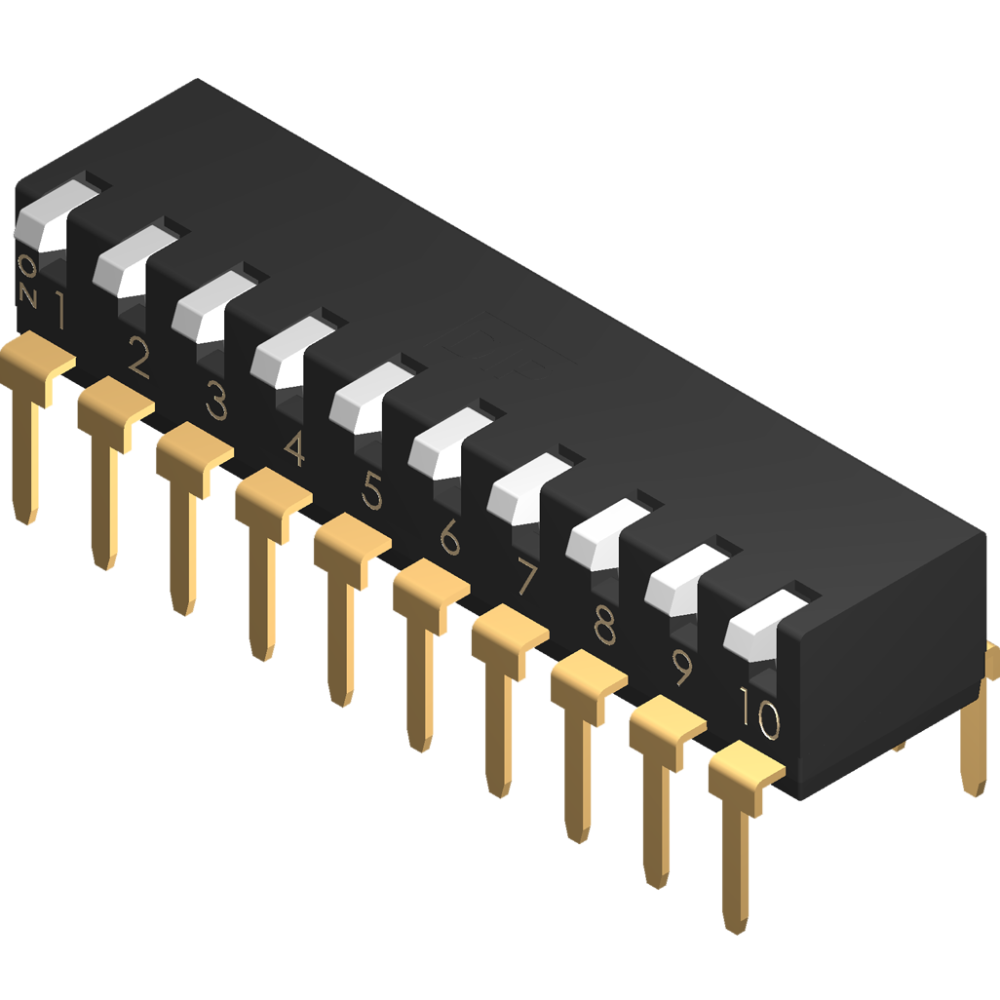

EP(I)(M)
下載目錄| 料號 | 腳距(mm) | 推鈕數 | 推鈕位置 | 貼膠帶(Y/N) | Mount type |
| EPI-02V | 7.62 | 2 | OFF | N | DIP |
| EPI-04V | 7.62 | 4 | OFF | N | DIP |
| EPI-06V | 7.62 | 6 | OFF | N | DIP |
| EPI-08V | 7.62 | 8 | OFF | N | DIP |
| EPI-10V | 7.62 | 10 | OFF | N | DIP |
| EPIR-02-TV | 7.62 | 2 | OFF | Y | DIP |
| EPIR-04-TV | 7.62 | 4 | OFF | Y | DIP |
| EPIR-06-TV | 7.62 | 6 | OFF | Y | DIP |
| EPIR-08-TV | 7.62 | 8 | OFF | Y | DIP |
| EPIR-10-TV | 7.62 | 10 | OFF | Y | DIP |
