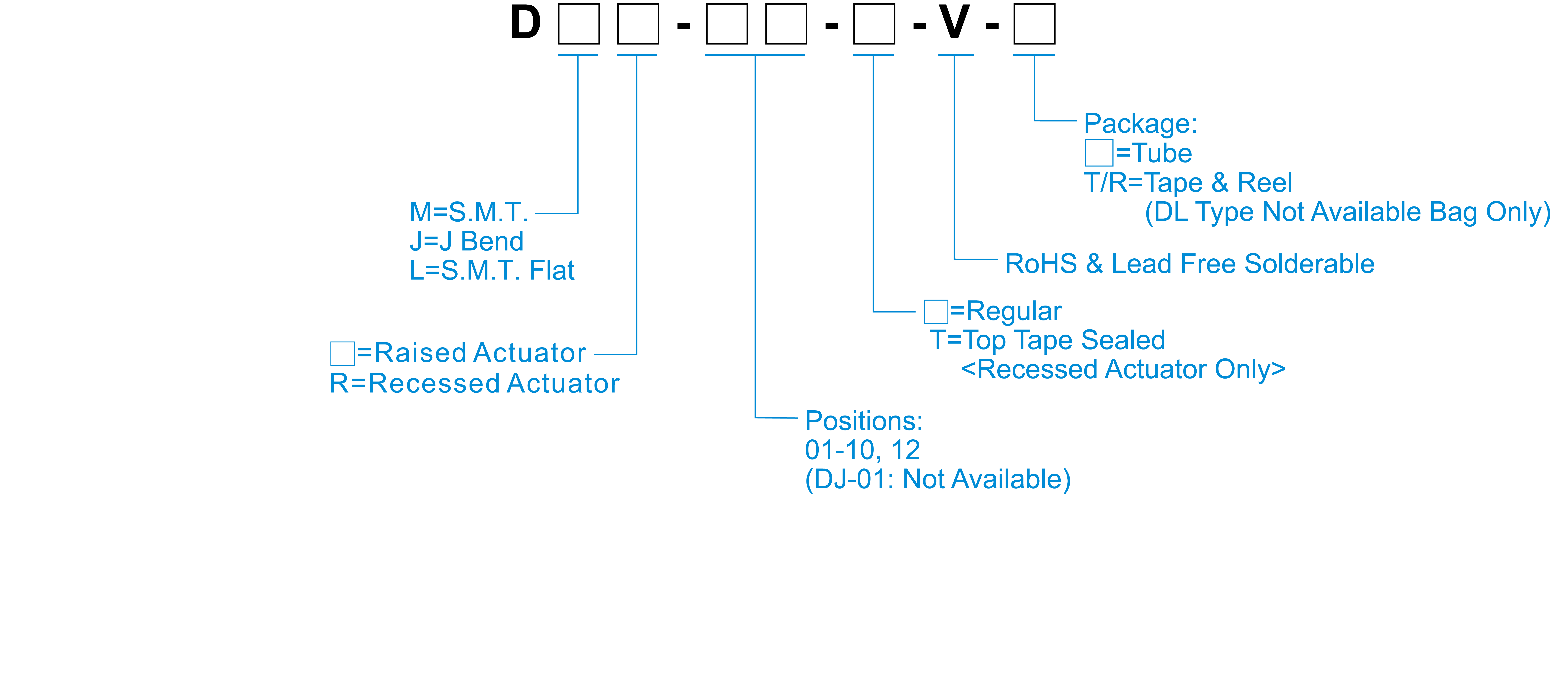

How to Order
Specification
| Contact Rating | 25mA, 24V DC |
|---|---|
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 500V DC |
| Dielectric Strength | 300V AC / 1 minute |
| Operating Force | 1000gf Max. |
| Travel | 1mm |
| Operating Life | 2,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |

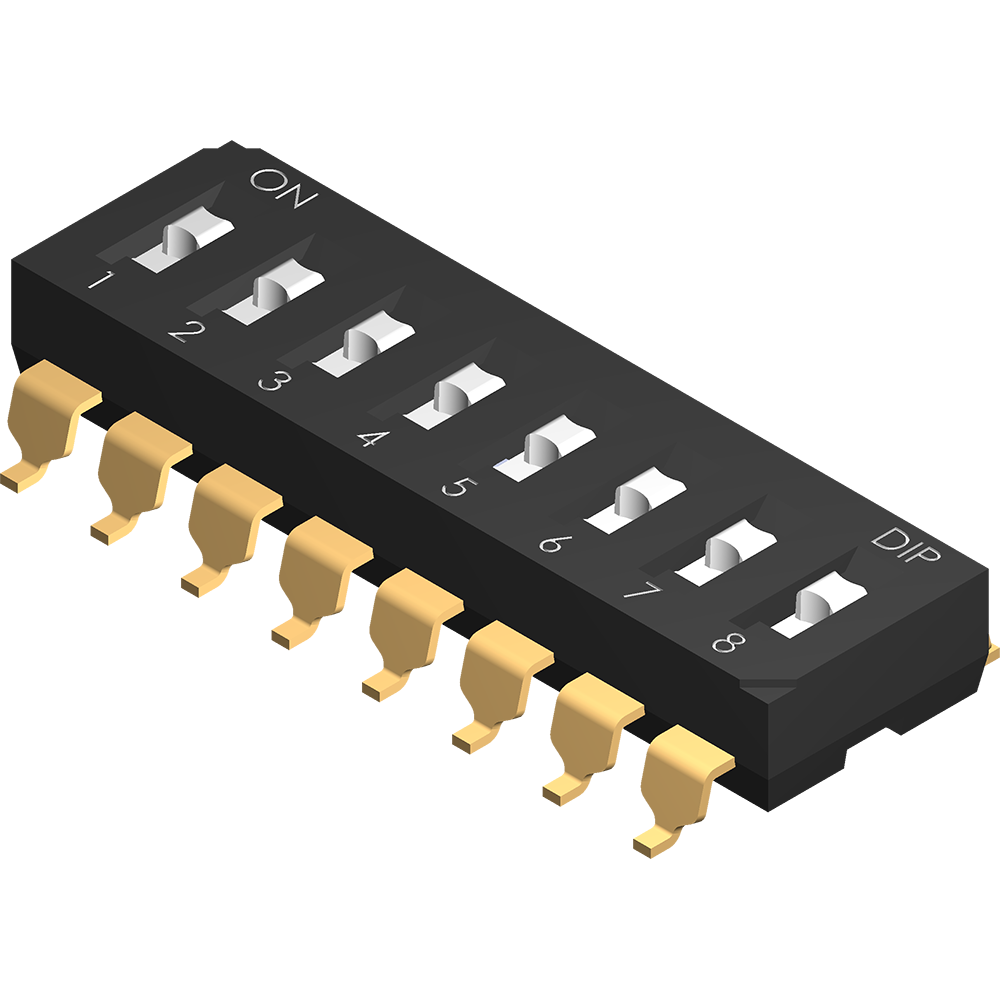

D(M)(J)(L)
下載目錄| 料號 | 腳距(mm) | 推鈕數 | 推鈕位置 | 貼膠帶(Y/N) | Mount type |
| DM-01-V | 9.8 | 1 | OFF | N | SMT |
| DM-02-V | 9.8 | 2 | OFF | N | SMT |
| DM-03-V | 9.8 | 3 | OFF | N | SMT |
| DM-04-V | 9.8 | 4 | OFF | N | SMT |
| DM-05-V | 9.8 | 5 | OFF | N | SMT |
| DM-06-V | 9.8 | 6 | OFF | N | SMT |
| DM-07-V | 9.8 | 7 | OFF | N | SMT |
| DM-08-V | 9.8 | 8 | OFF | N | SMT |
| DM-09-V | 9.8 | 9 | OFF | N | SMT |
| DM-10-V | 9.8 | 10 | OFF | N | SMT |
