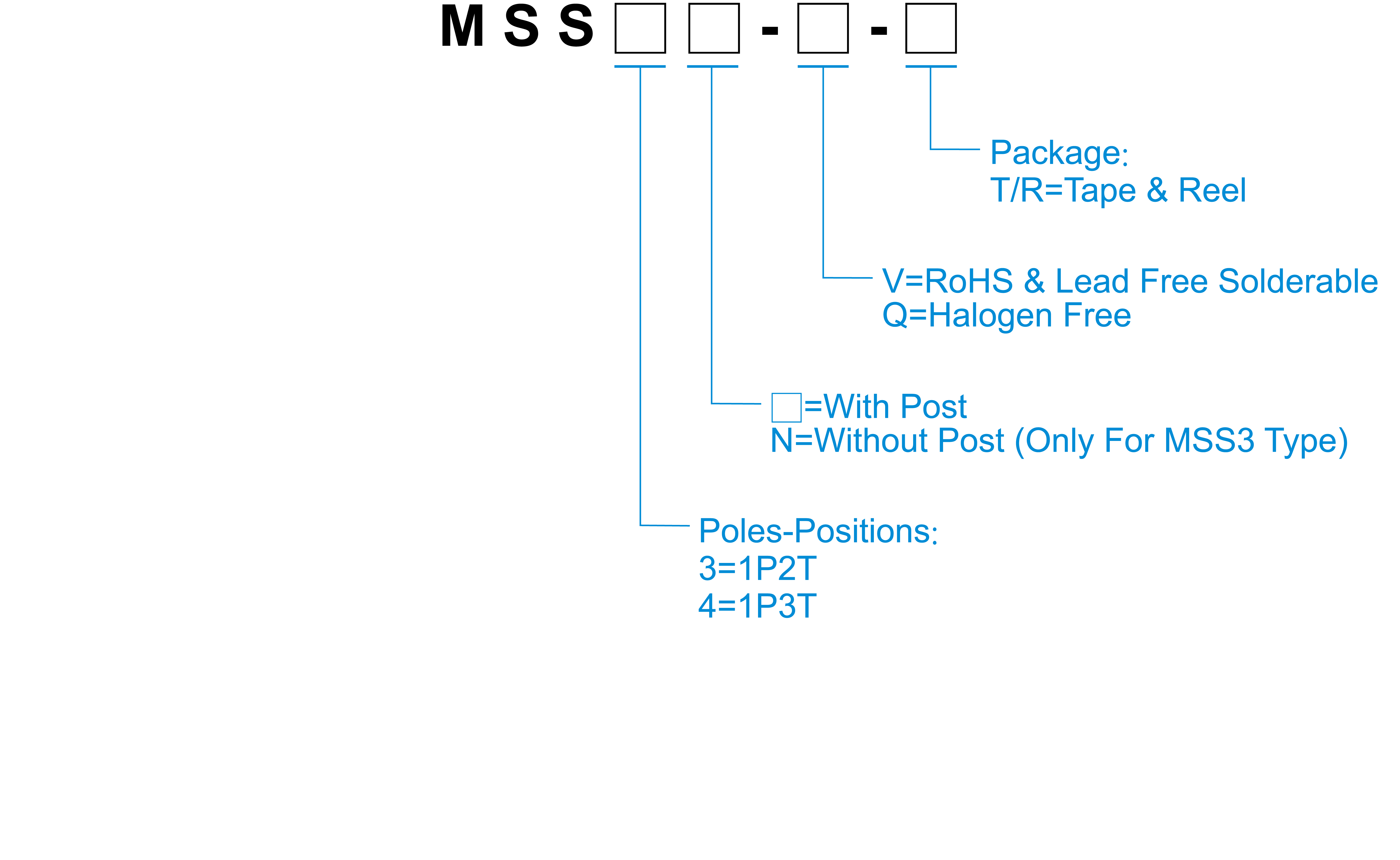

How to Order
Specification
| Contact Rating | 25mA, 24V DC |
|---|---|
| Contact Resistance | 70 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 100V DC |
| Dielectric Strength | 100V AC / 1 minute |
| Operating Force | MSS3：150±100gf (1.47N±0.98N) MSS4： A→B 150±100gf (1.47N±0.98N) C→B 150±100gf (1.47N±0.98N) B→C 200±150gf (1.96N±1.47N) B→A 200±150gf (1.96N±1.47N) |
| Travel | 1.5mm |
| Operating Life | 10,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
MSS(3)(4)
下載目錄| 料號 | 觸點形式 | 推鈕方向 | Mount type | 操作力(gf) | 行程(mm) |
| MSS3□-□ | 1P2T | Side | SMT | 150 | 1.5 |
| MSS4-□ | 1P3T | Side | SMT | 150/200 | 1.5 |
