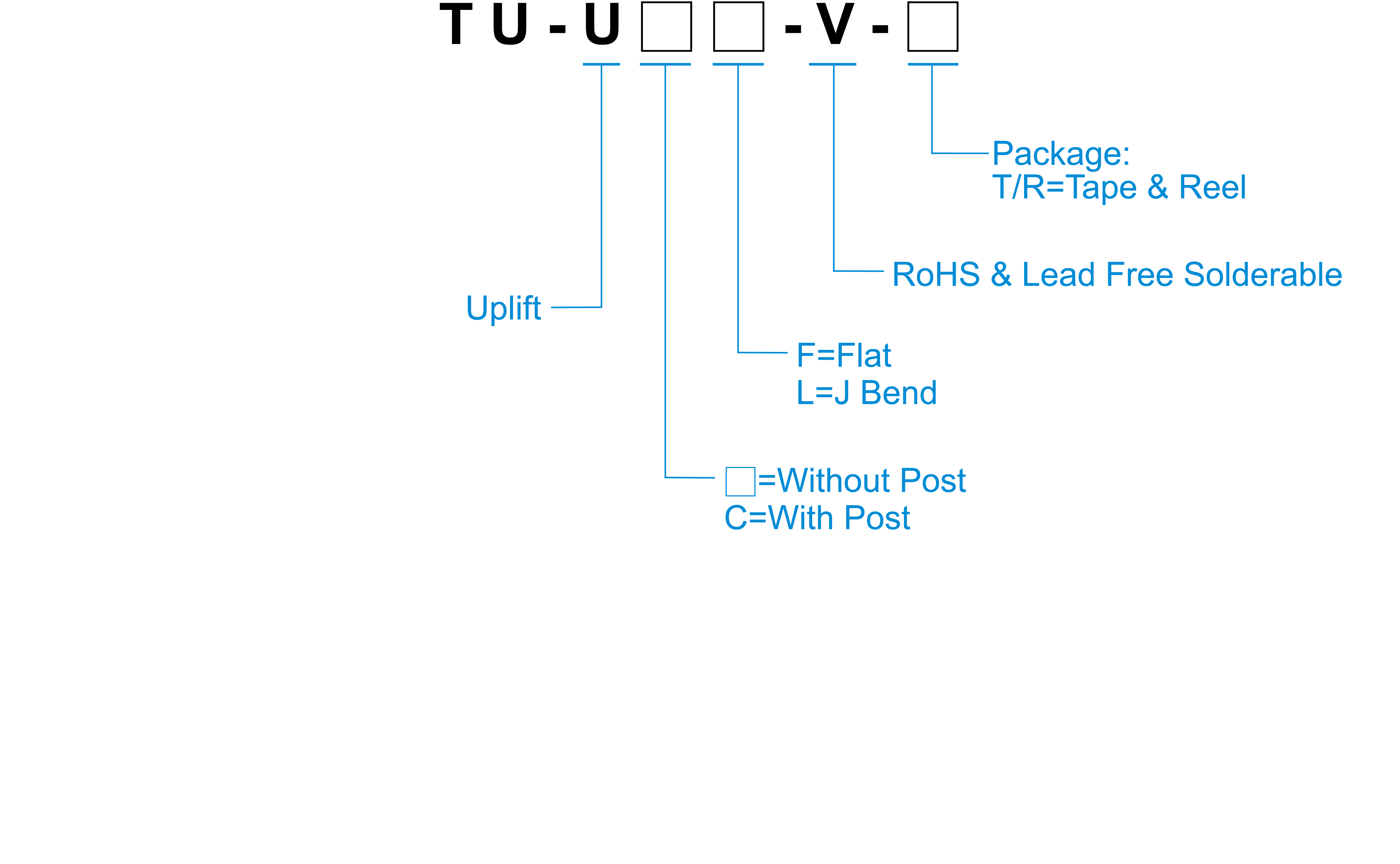

How to Order
Specification
| Contact Rating | 50µA, 3V DC to 10mA, 5V DC |
|---|---|
| Contact Resistance | 1Ω Max. |
| Insulation Resistance | 100MΩ Min. |
| Dielectric Strength | 100V AC / 1 minute |
| Operating Force | 40gf Max. |
| Operating Position | 60ﾟ |
| Operating Life | 50,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
TU
カタログダウンロード| 料號 | 操作方向 | 端子形状 | OP_1(mm) | OP_2(mm) | 防塵防水 | |
| TU-U□F-V | 1P1T | For Lead | 40 | 60ﾟ | - | - |
| TU-U□L-V | 1P1T | For Lead | 40 | 60ﾟ | - | - |
