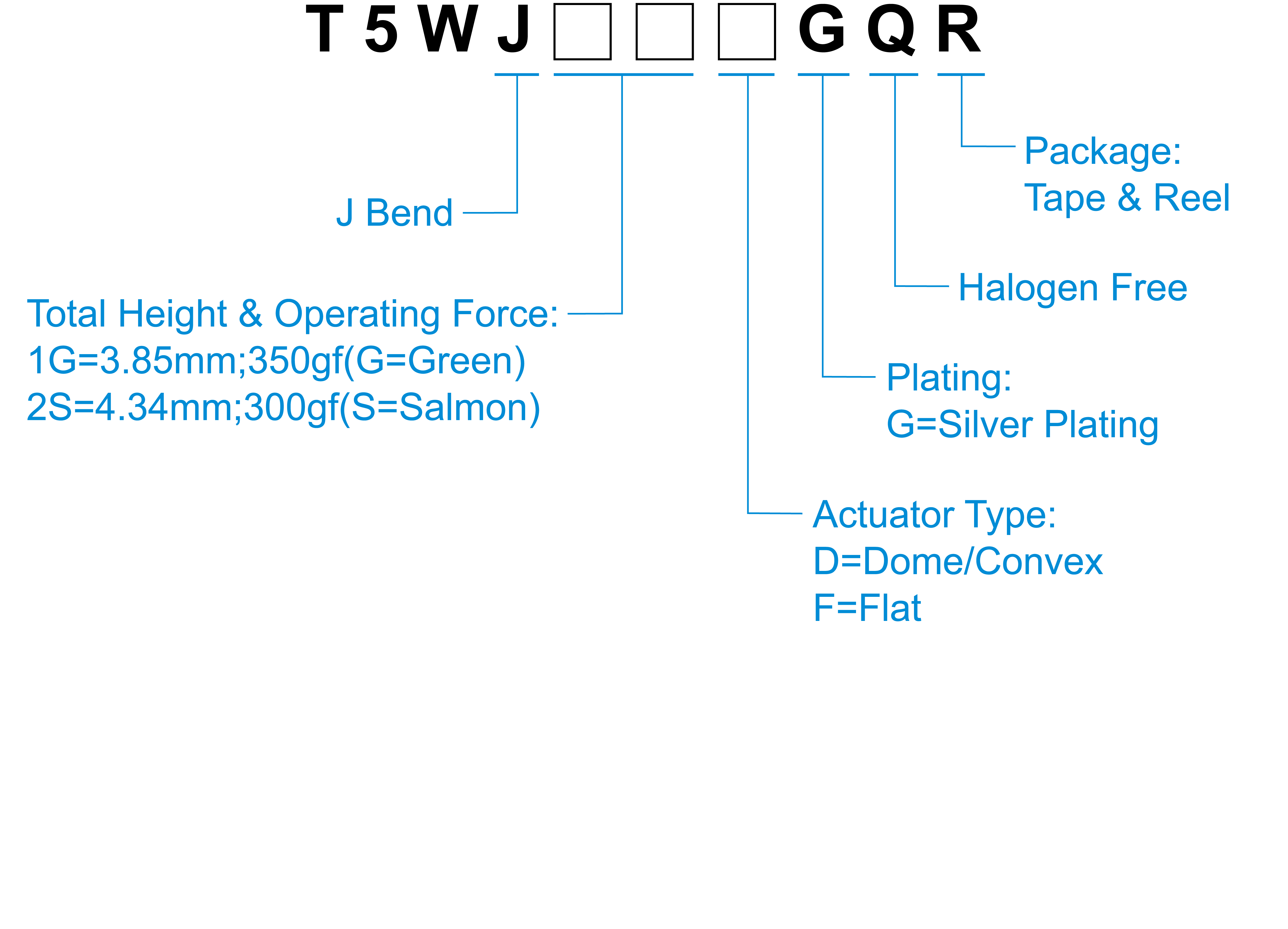

How to Order
Specification
| Contact Rating | 10uA, 1V DC Min. / 50mA, 16V DC Max. |
|---|---|
| Contact Resistance | 100 mΩ Max. (initial) |
| Insulation Resistance | 100MΩ Min. |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 350±60gf |
| Travel | 0.7±0.3mm |
| Operating Life | 250,000 cycles Min. |
| Operating Temp. | -40°C~+105°C |
| Storage Temp. | -40°C~+105°C |
T5WJ
下載目錄| 料號 | 操作方向 | 高度(mm) | 動作力(gf) | 行程(mm) | 操作壽命(cycles) | 防塵水 |
| T5WJ1GDGQ | Vertical Push | 3.85 | 350 | 0.7 | 250000 | ● |
| T5WJ1GFGQ | Vertical Push | 3.85 | 350 | 0.7 | 250000 | ● |
| T5WJ2SDGQ | Vertical Push | 4.34 | 300 | 0.9 | 250000 | ● |
| T5WJ2SFGQ | Vertical Push | 4.34 | 300 | 0.9 | 250000 | ● |
