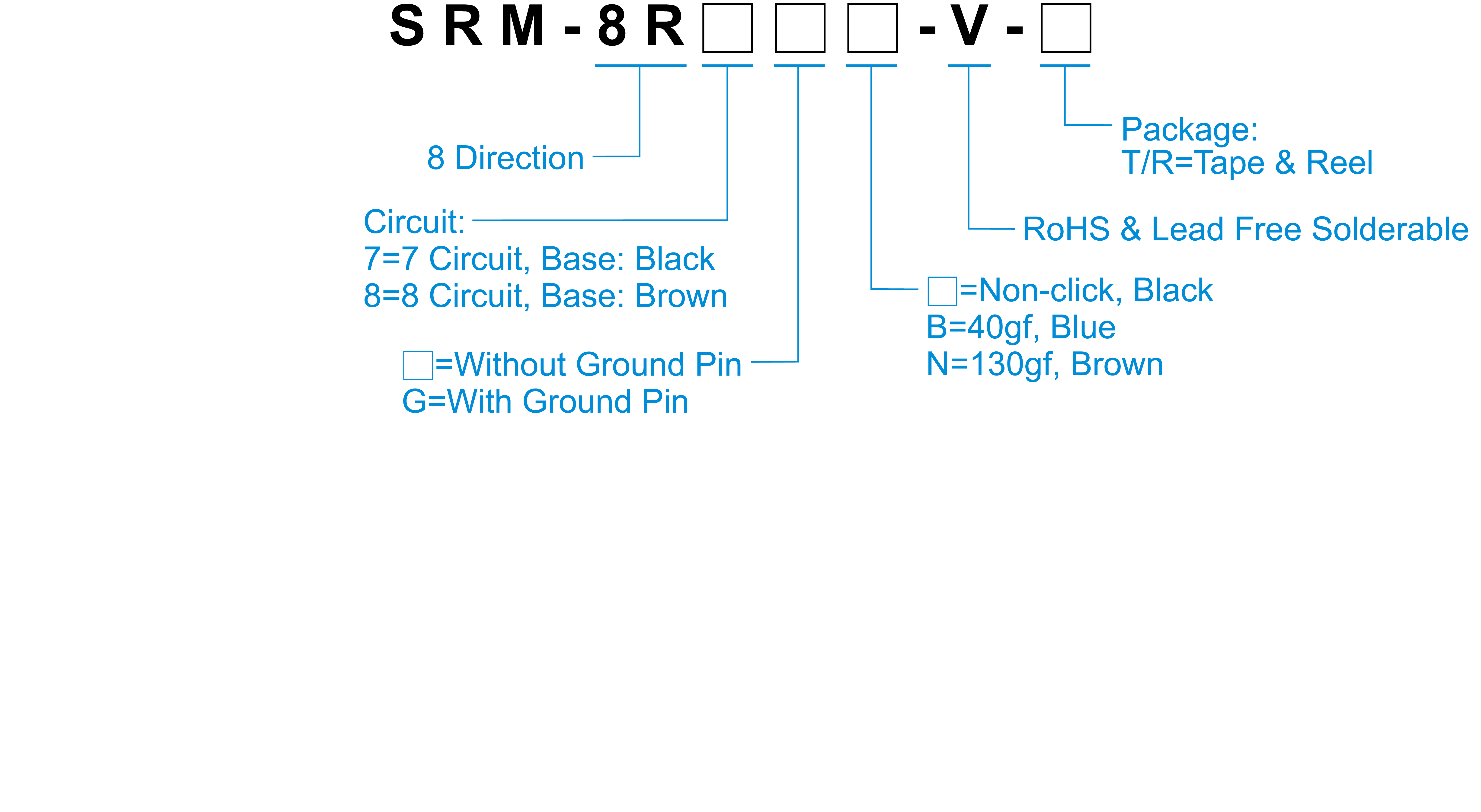

How to Order
Specification
| Contact Rating | 25mA, 24V DC |
|---|---|
| Contact Resistance | 200 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 500V DC |
| Dielectric Strength | 300V AC / 1 minute |
| Operating Force | 40±30gf, B 130±50gf, N |
| Operating Life | 10,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
| 料號 | Operating Direction | Stroke (mm) | Travel | ||
| SRM-8R□□B-V | side Push | SMT | 40 | - | 45ﾟ |
| SRM-8R□□N-V | side Push | SMT | 130 | - | 45ﾟ |
