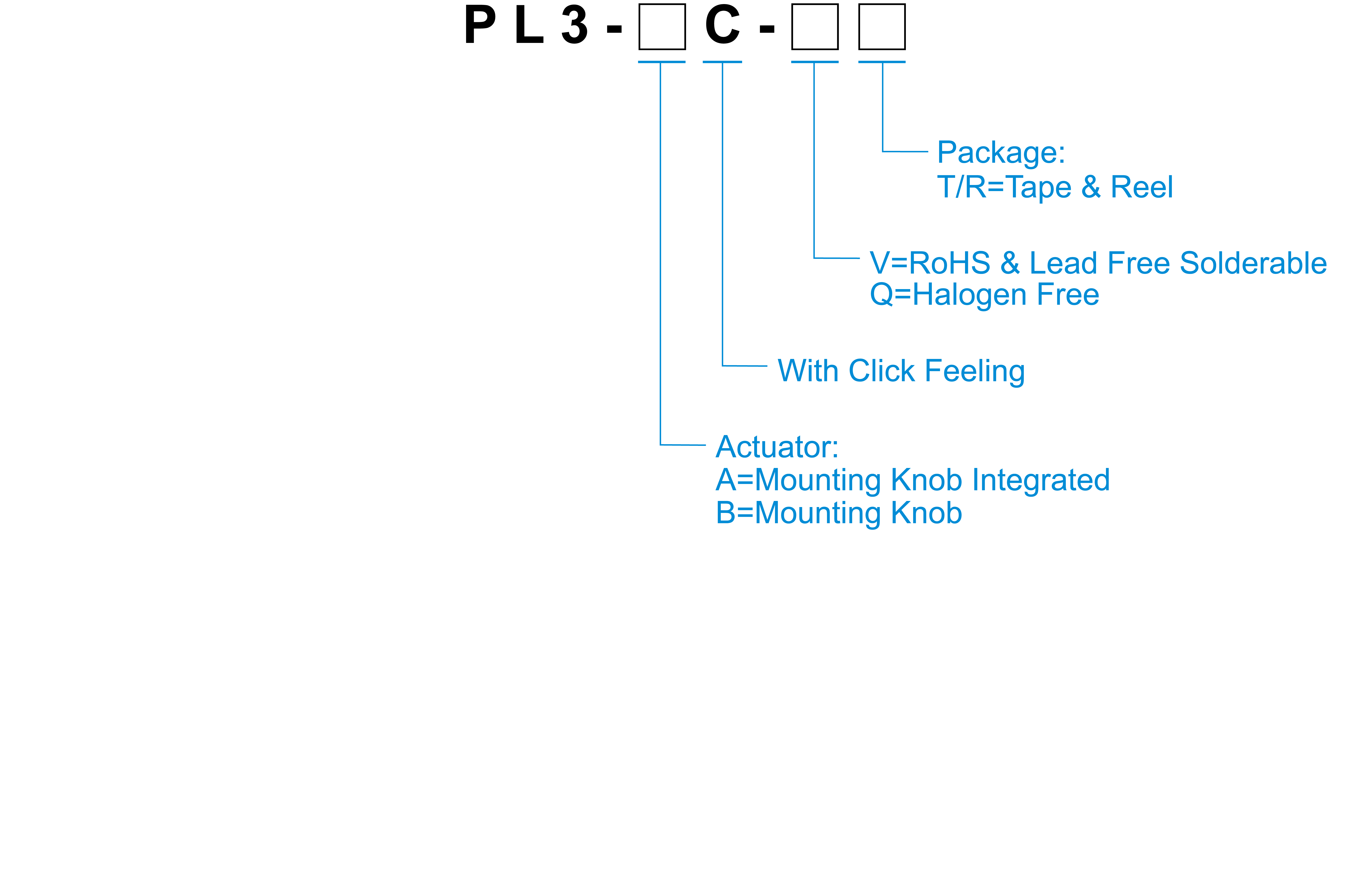

How to Order
Specification
| Contact Rating | 10mA, 5V DC |
|---|---|
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 100V DC |
| Dielectric Strength | 100V AC / 1 minute |
| Operating Force | 70±50gf, Lever(CW. CCW) 200±100gf, Center push |
| Operating Life | 100,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
| 料號 | Operating Direction | Stroke (mm) | Travel | ||
| PL3-AC-□ | side Push | Mounting Knob Integrated | 70, Lever(CW. CCW) / 200, Center push | 0.9 | 25ﾟ |
| PL3-BC-□ | side Push | Mounting Knob | 70, Lever(CW. CCW) / 200, Center push | 0.9 | 25ﾟ |
