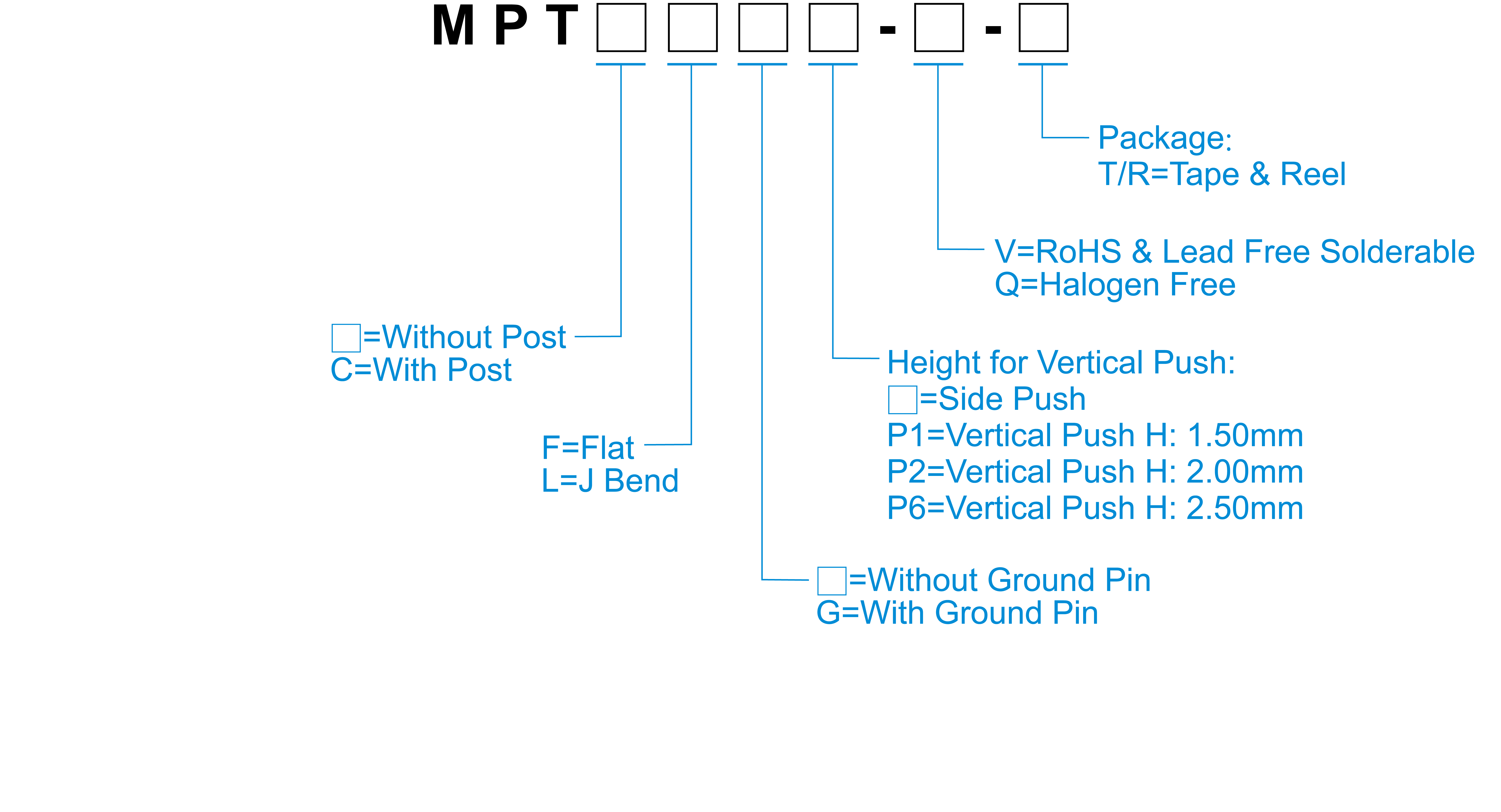

How to Order
Specification
| Contact Rating | 50mA, 12V DC |
|---|---|
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 100V DC |
| Dielectric Strength | 100V AC / 1 minute |
| Operating Force | 160±50gf (Vertical Push) 220±65gf (Side Push) |
| Travel | 0.13mm (Vertical Push) 0.20mm (Side Push) |
| Operating Life | 100,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
| 料號 | Operating Direction | H (mm) | Force(gf) | Stroke (mm) | Life cycles | Dustproof and Waterproof |
| MPT□□□-□ | Side Push | 1.5 | 220 | 0.2 | 100000 | |
| MPT□□□P1-□ | Vertical Push | 1.5 | 160 | 0.13 | 100000 | |
| MPT□□□P2-□ | Vertical Push | 2 | 160 | 0.13 | 100000 | |
| MPT□□□P6-□ | Vertical Push | 2.5 | 160 | 0.13 | 100000 |
