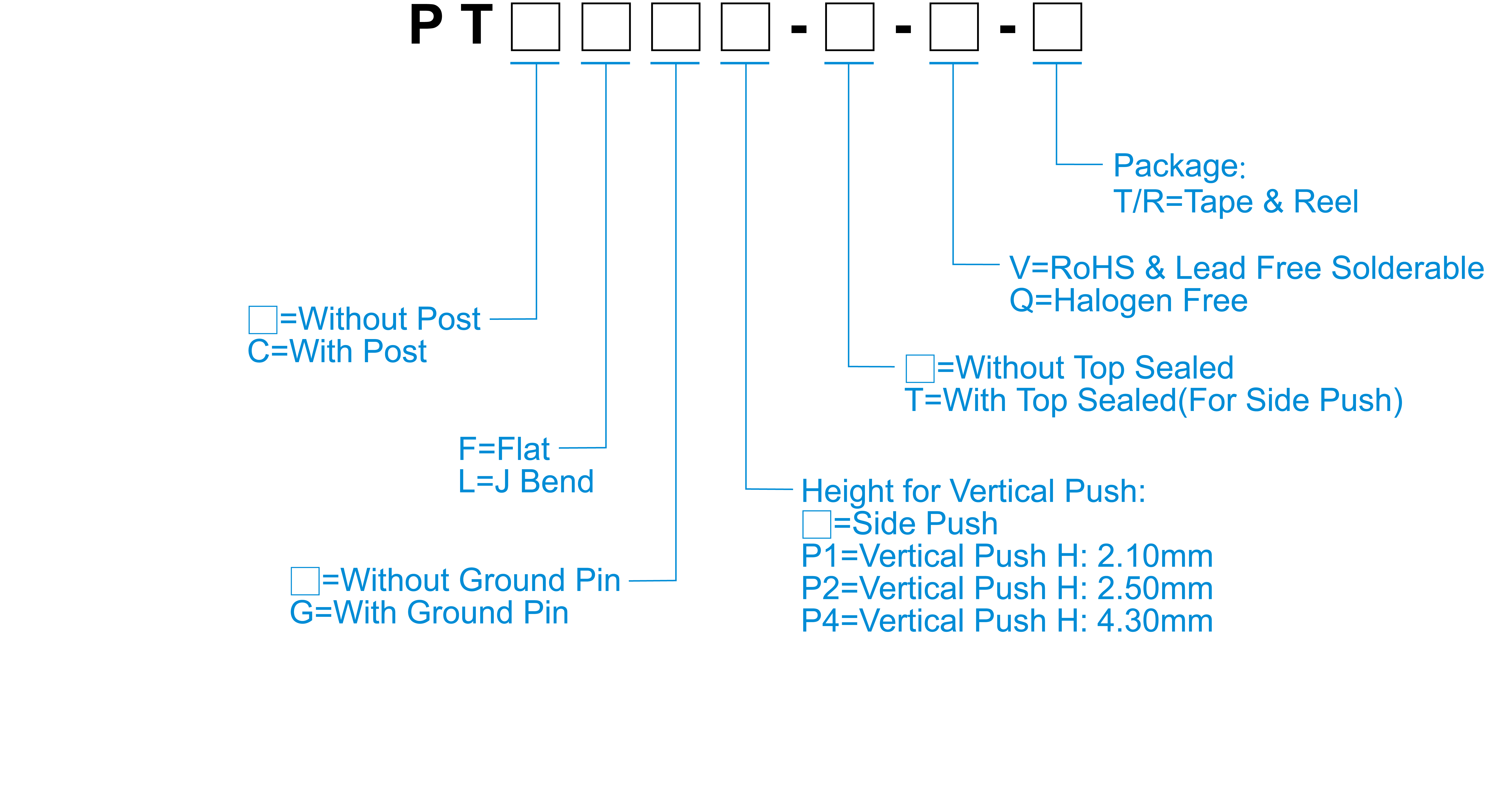

How to Order
Specification
| Contact Rating | 50mA, 12V DC |
|---|---|
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 500V DC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 160±50gf (Vertical Push) 220+80/-70gf (Side Push) |
| Travel | 0.20mm (Vertical Push) 0.30mm (Side Push) |
| Operating Life | 100,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
| 料號 | Operating Direction | H (mm) | Force(gf) | Stroke (mm) | Life cycles | Dustproof and Waterproof |
| PT□□□-T-□-□ | Side Push | 1.67 | 220 | 0.3 | 100000 | |
| PT□□□P1-□-□ | Vertical Push | 2.1 | 160 | 0.2 | 100000 | |
| PT□□□P2-□-□ | Vertical Push | 2.5 | 160 | 0.2 | 100000 | |
| PT□□□P4-□-□ | Vertical Push | 4.3 | 160 | 0.2 | 100000 |
