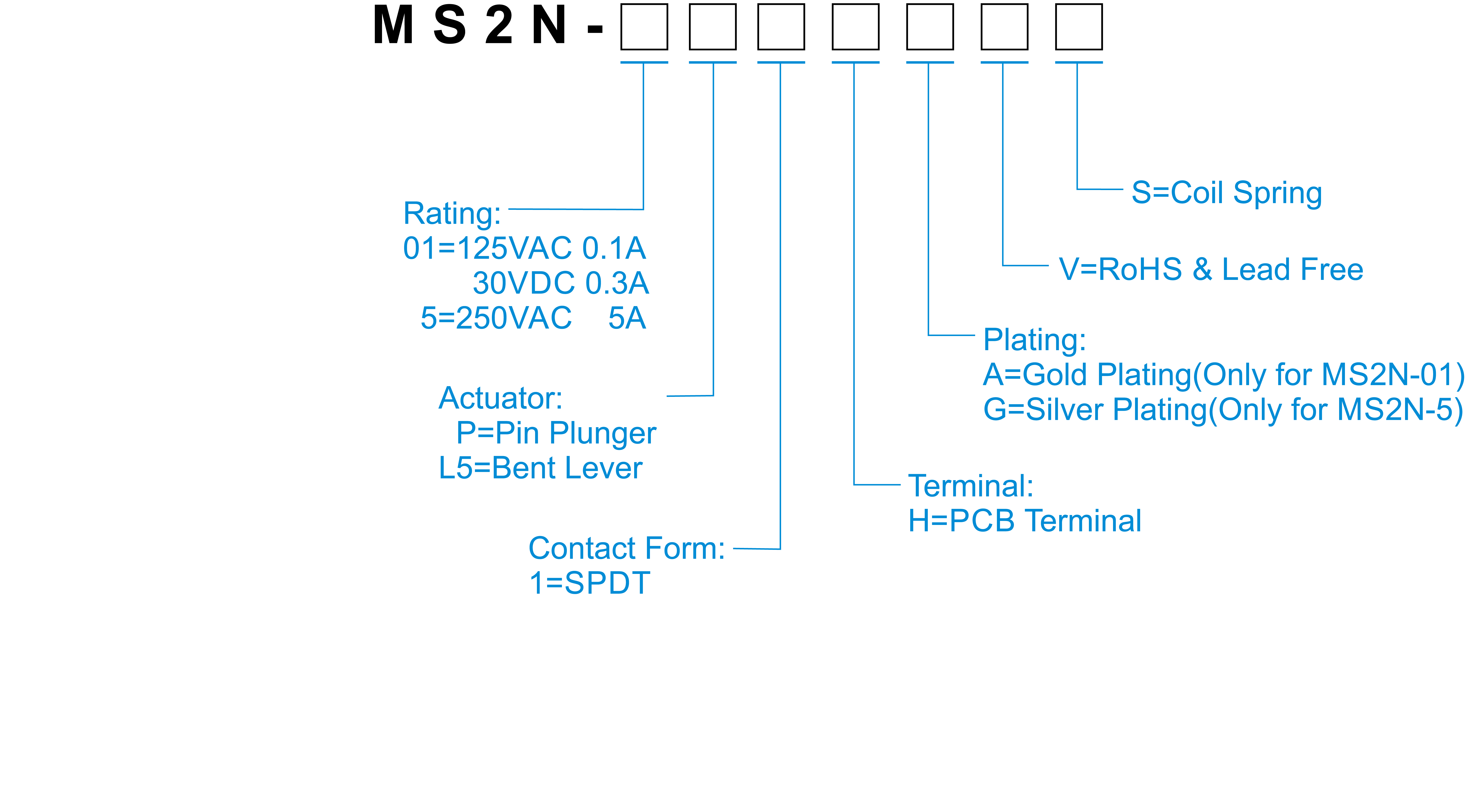

How to Order
Specification
| Contact Rating | 0.1A at 125VAC/0.3A at 30VDC 5A at 250VAC |
|---|---|
| Mechanical Durability | 1,000,000 cycles Min. |
| Electrical Durability | 10,000 cycles Min. |
| Contact Resistance | 100 mΩ Max. 50mΩ Max. |
| Insulation Resistance | 100MΩ Min. |
| Dielectric Strength 1 | Between terminals of same polarity"AC 1000V 1 minute |
| Dielectric Strength 2 | Between current-carrying metal parts and ground "AC 2,500V 1 minute |
| Dielectric Strength 3 | Between each terminals and non-current-carrying metal part "AC 2,500V 1 minute" |
| Operating Temp. | -40°C~+105°C |

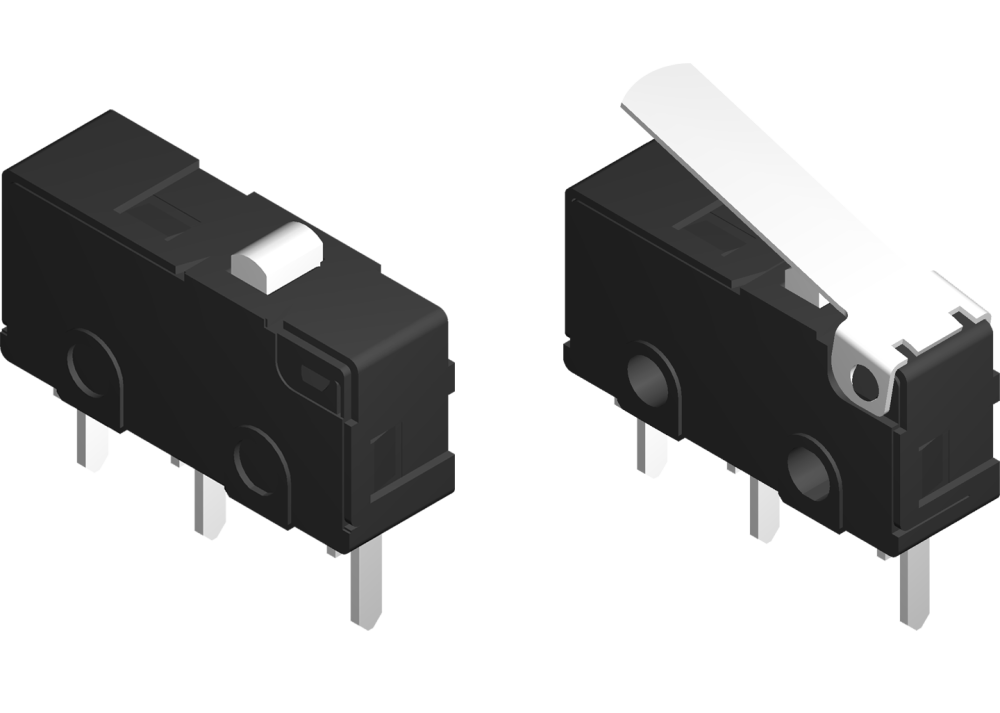

MS2N
Download Directory| 料號 | Contact Form | Terminal | ||
| MS2N-01P1HAVS | SPDT | PCB Terminal | 204 | 8.1 |
| MS2N-5P1HGVS | SPDT | PCB Terminal | 204 | 8.1 |
| MS2N-01L51HAVS | SPDT | PCB Terminal | 71 | 10.55 |
| MS2N-5L51HGVS | SPDT | PCB Terminal | 71 | 10.55 |
