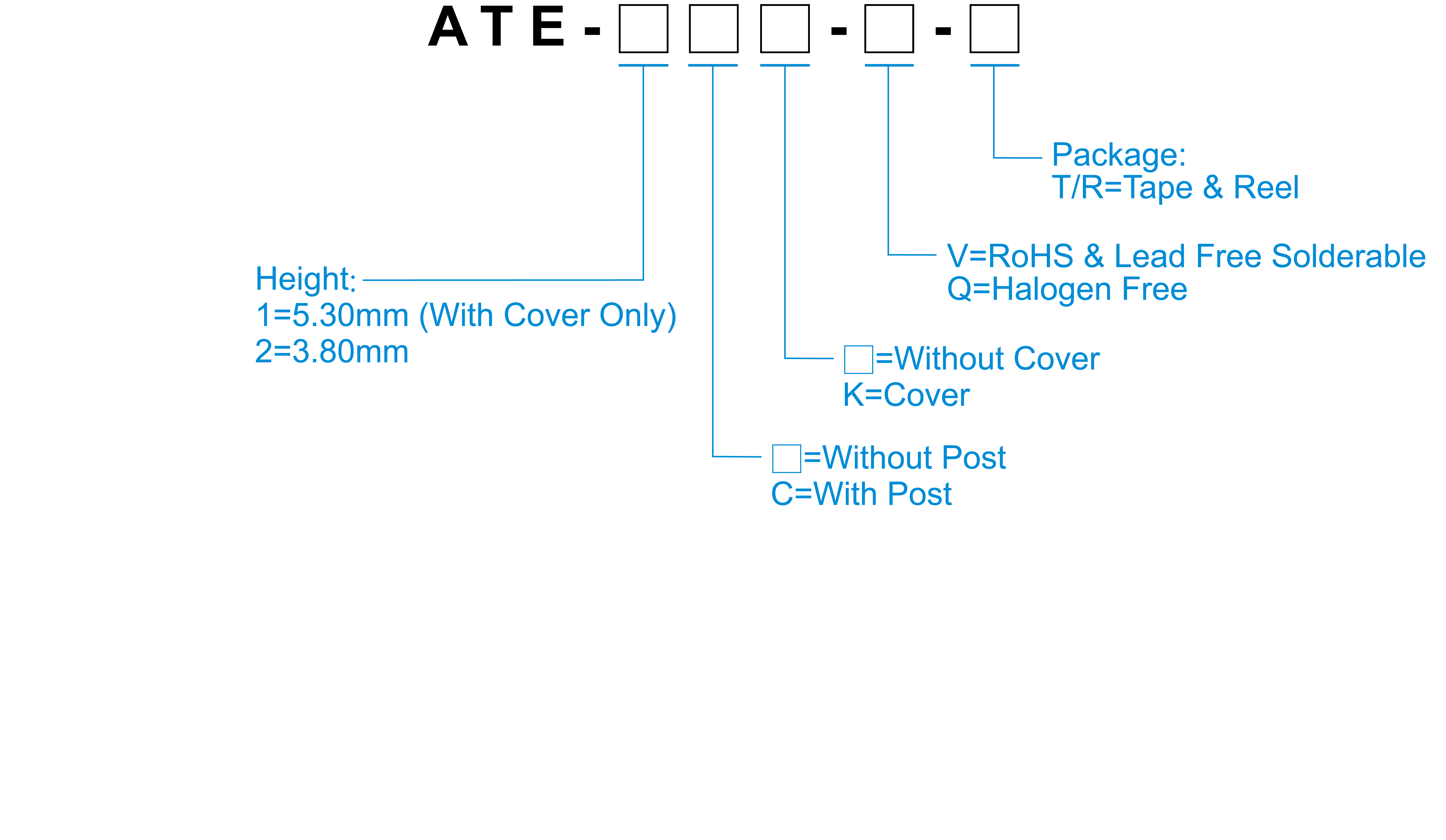

How to Order
Specification
| Contact Rating | 1mA, 5V DC |
|---|---|
| Contact Resistance | 1Ω Max. |
| Insulation Resistance | 100MΩ Min. 100V DC |
| Dielectric Strength | 100V AC / 1 minute |
| Operating Force | 40gf Max. |
| Operating Position | 3.9mm Max. Stem Height 5.3mm, 2.6mm Max. Stem Height 3.8mm |
| Operating Life | 100,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
| 料號 | Operating Direction | Terminal | OP_1(mm) | OP_2(mm) | Dustproof and Waterproof | |
| ATE-1□K-□ | 1P1T | For Lead | 40 | 3.9 | - | - |
| ATE-2□□-□ | 1P1T | For Lead | 40 | 2.6 | - | - |
