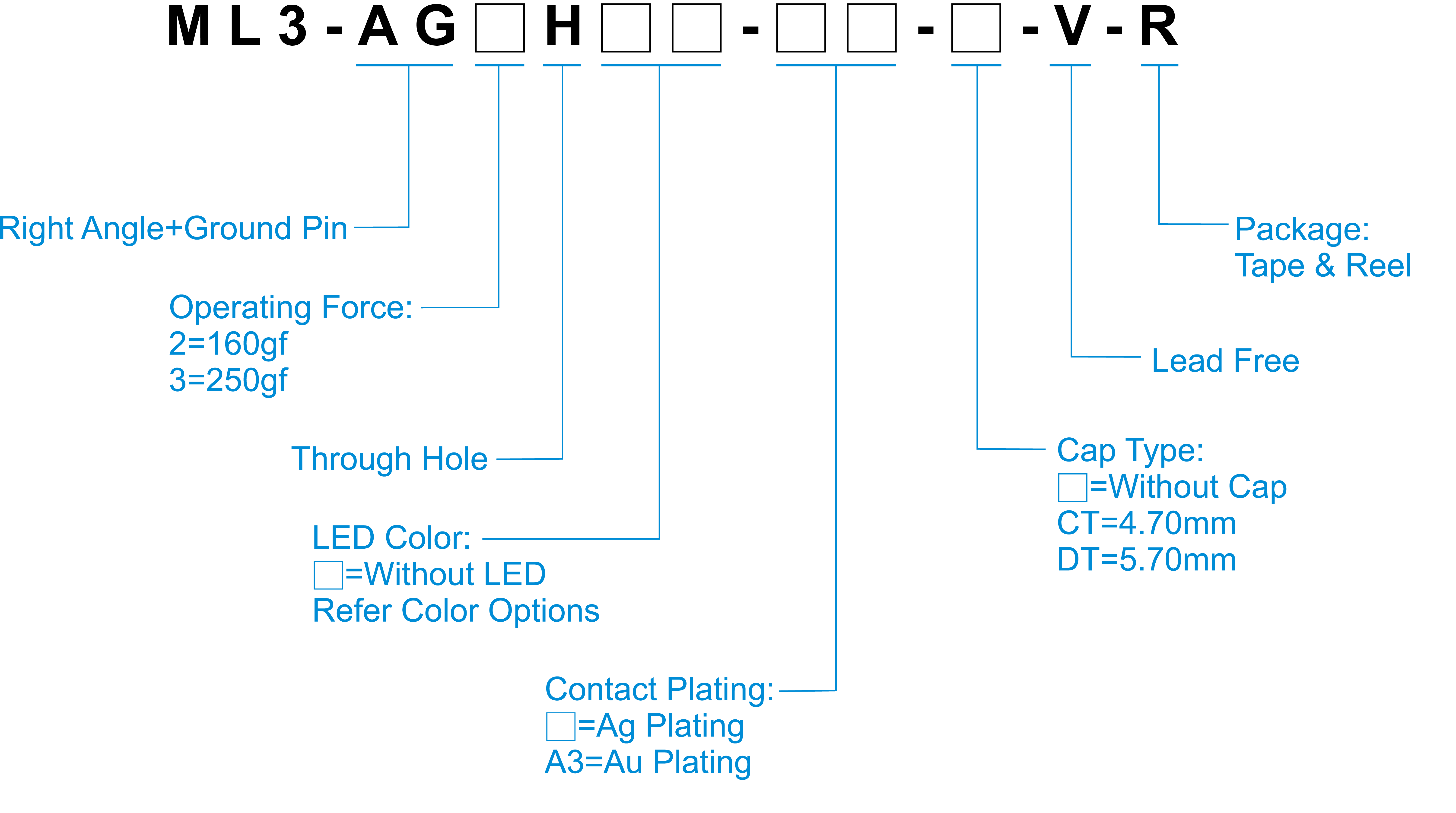

How to Order
Specification
| Contact Rating | 50mA, 12V DC |
|---|---|
| Contact Resistance | 500 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 100V DC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 160±50gf, 250±100gf |
| Travel | 0.2mm |
| Operating Life | 50,000 cycles for 250gf, 100,000 cycles for 160gf |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
| 料號 | LED 1 | LED color 2 | Cap color | Stroke (mm) | Life cycles | Cap(Ø) | Cap Printing | ||
| ML3-AG2H-□□-Q | - | - | - | 160 | 0.2 | 100000 | - | - | - |
| ML3-AG2H-□□-CT-V | - | - | - | 160 | 0.2 | 100000 | 4.7 | 4 | - |
| ML3-AG2H-□□-DT-V | - | - | - | 160 | 0.2 | 100000 | 5.7 | 4 | - |
| ML3-AG2HB-□□-□□-Q | B(Blue) | - | - | 160 | 0.2 | 100000 | - | - | - |
| ML3-AG2HB□□-□□-CT-V | B(Blue) | - | - | 160 | 0.2 | 100000 | 4.7 | 4 | - |
| ML3-AG2HB□□-□□-DT-V | B(Blue) | - | - | 160 | 0.2 | 100000 | 5.7 | 4 | - |
| ML3-AG2HPB-□□-□□-Q | PB(Blue) | - | - | 160 | 0.2 | 100000 | - | - | - |
| ML3-AG2HPB□□-□□-CT-V | PB(Blue) | - | - | 160 | 0.2 | 100000 | 4.7 | 4 | - |
| ML3-AG2HPB□□-□□-DT-V | PB(Blue) | - | - | 160 | 0.2 | 100000 | 5.7 | 4 | - |
| ML3-AG2HPG-□□-□□-Q | PG(Pure Green) | - | - | 160 | 0.2 | 100000 | - | - | - |
