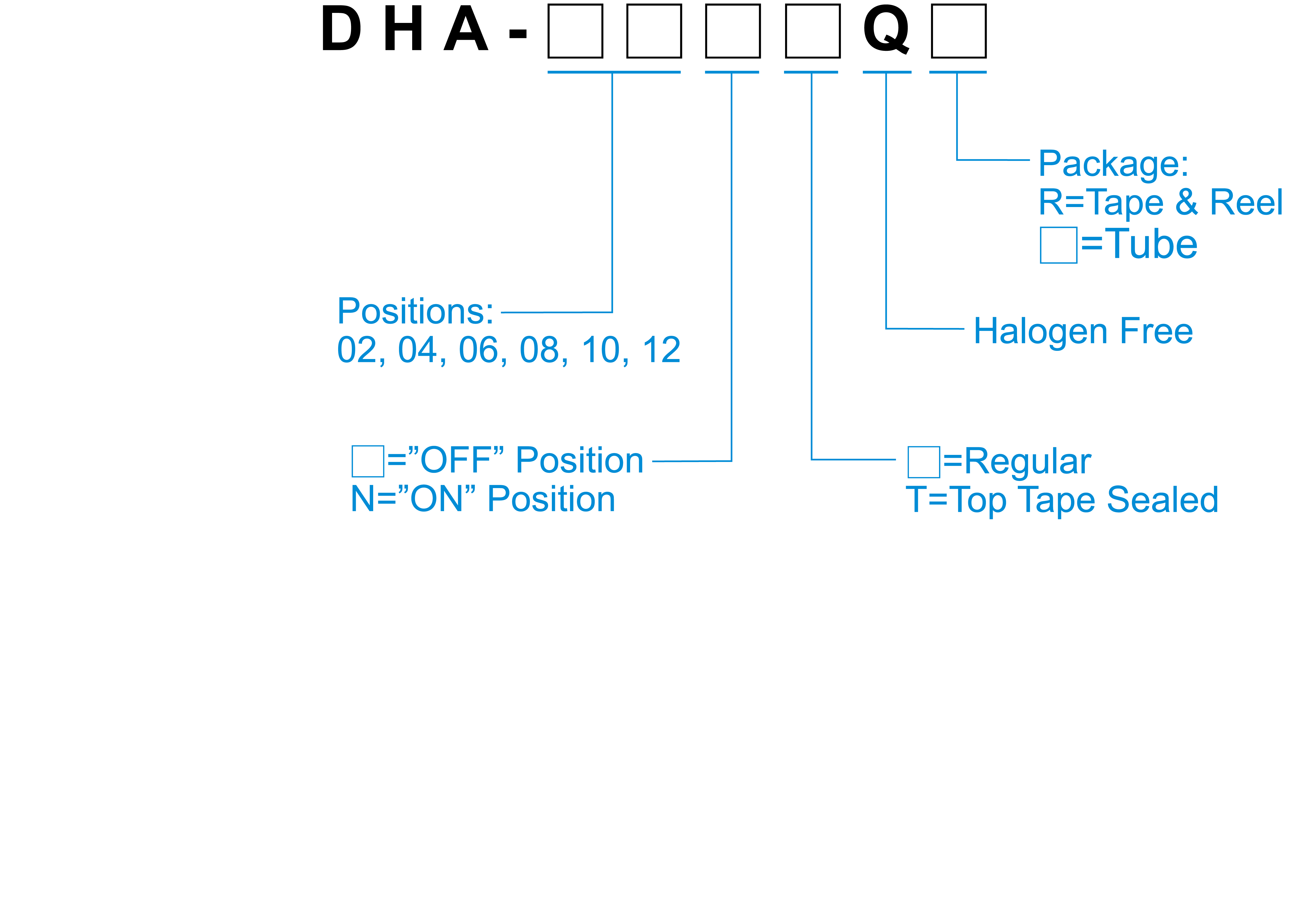

How to Order
Specification
| Contact Rating | 25mA, 24V DC |
|---|---|
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 500V DC |
| Dielectric Strength | 300V AC / 1 minute |
| Operating Force | 500gf Max. |
| Travel | 0.8mm |
| Operating Life | 1,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
| 料號 | Terminal pitch (mm) | Pole | On/Off Position | With Tape (Y/N) | |
| DHA-02Q | 8.1 | 2 | OFF | N | SMT |
| DHA-04Q | 8.1 | 4 | OFF | N | SMT |
| DHA-06Q | 8.1 | 6 | OFF | N | SMT |
| DHA-08Q | 8.1 | 8 | OFF | N | SMT |
| DHA-10Q | 8.1 | 10 | OFF | N | SMT |
| DHA-12Q | 8.1 | 12 | OFF | N | SMT |
| DHA-02TQ | 8.1 | 2 | OFF | Y | SMT |
| DHA-04TQ | 8.1 | 4 | OFF | Y | SMT |
| DHA-06TQ | 8.1 | 6 | OFF | Y | SMT |
| DHA-08TQ | 8.1 | 8 | OFF | Y | SMT |
