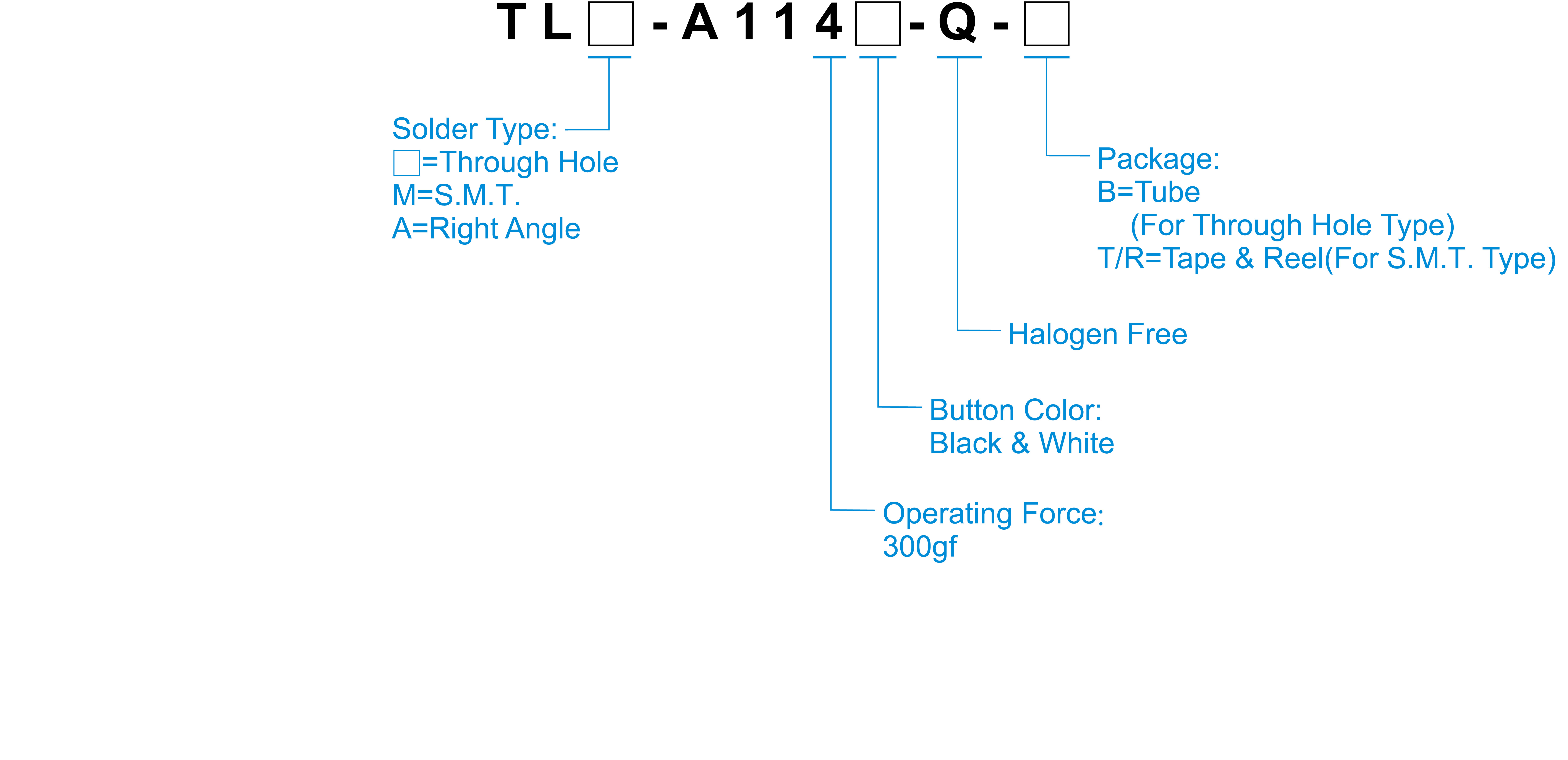

How to Order
Specification
| Contact Rating | 0.5~50mA, 24V DC |
|---|---|
| Contact Resistance | 30 mΩ Max. |
| Insulation Resistance | 10MΩ Min. 100V DC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 300±75gf |
| Travel | 1mm |
| Operating Life | 10,000,000 cycles |
| Operating Temp. | -40°C~+160°C |
| Storage Temp. | -40°C~+160°C |

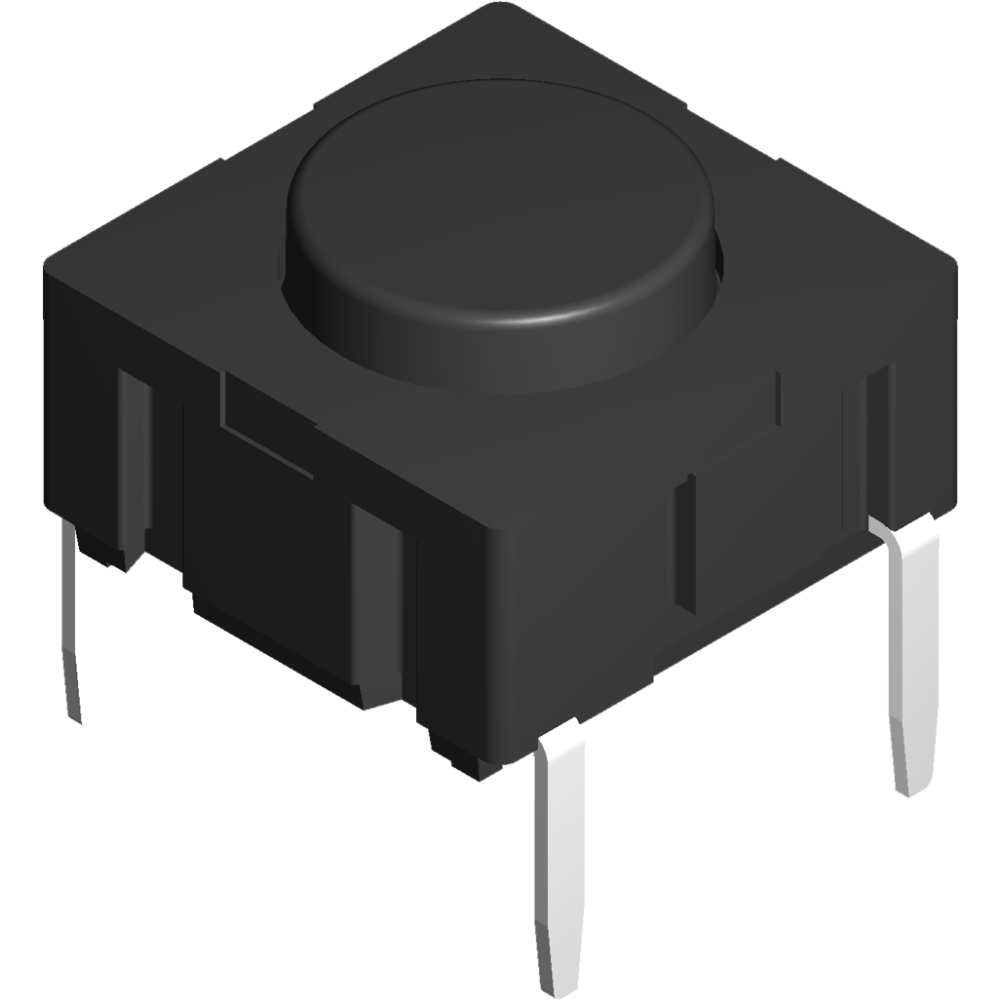

TL( )-A1
Download Directory| 料號 | Operating Direction | H (mm) | Force(gf) | Stroke (mm) | Life cycles | Dustproof and Waterproof |
| TL-A114K-Q | Vertical Push | 6.4 | 300 | 1 | 10000000 | ● |
| TLM-A114K-Q | Vertical Push | 6.4 | 300 | 1 | 10000000 | ● |
| TLA-A114K-Q | Side Push | 4.85 | 300 | 1 | 10000000 | ● |
