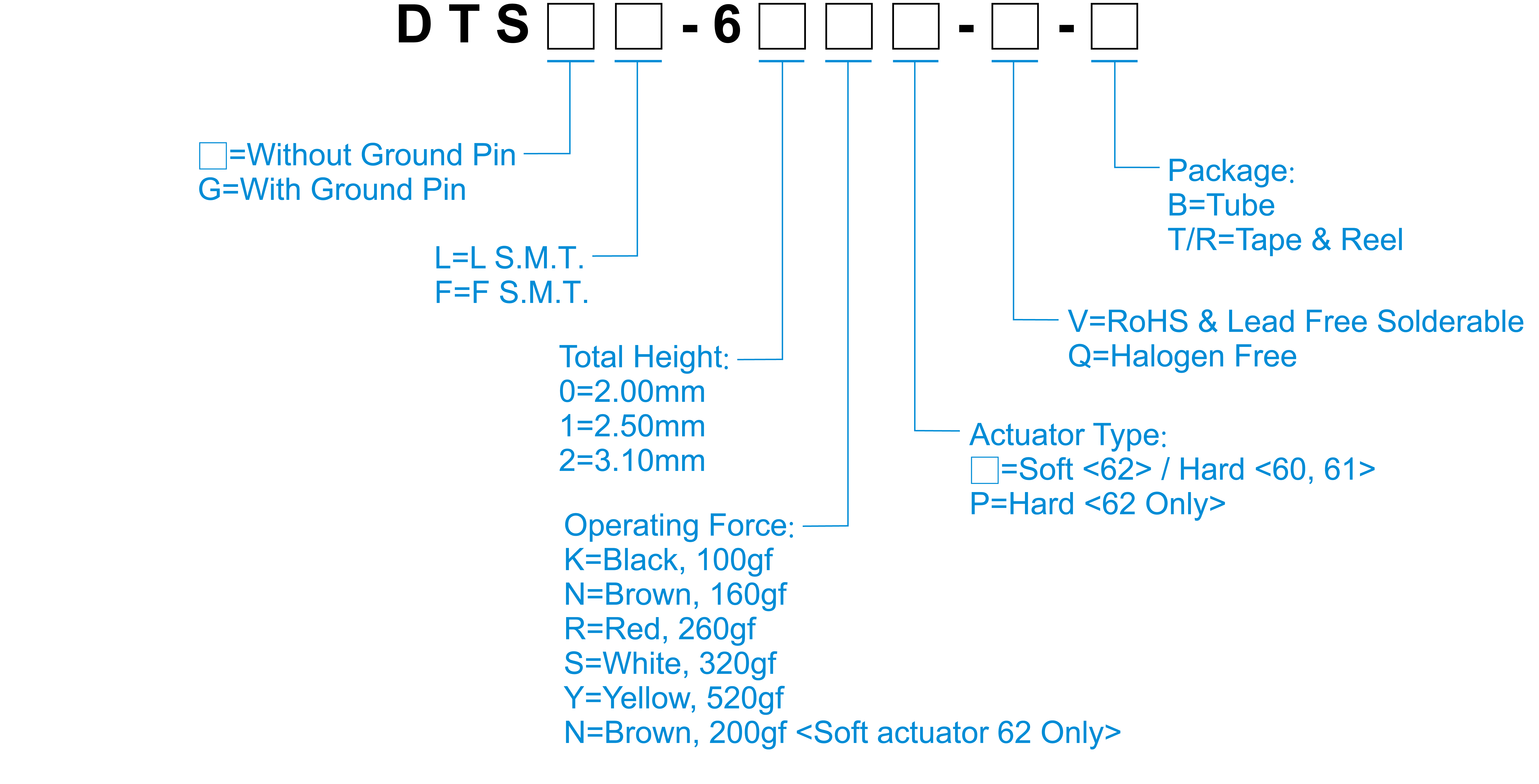

How to Order
Specification
Contact Rating | 50mA,12V DC |
---|---|
Contact Resistance | 100mΩ Max. |
Insulation Resistance | 100MΩ Min. 500V DC |
Dielectric Strength | 250V AC / 1 minute |
Operating Force | 100±50gf,Black(K) 160±50gf,Brown(N) 200±50gf,Brown(N) 62 Only 260±50gf,Red(R) 320±80gf,White(S) 520±130gf,Yellow(Y) |
Travel | 0.25mm |
Operating Life | 300,000 cycles for 520/320gf 500,000 cycles for 260/200gf 1,000,000 cycles for 160/100gf |
Operating Temp. | -40°C~+85°C |
Storage Temp. | -40°C~+85°C |

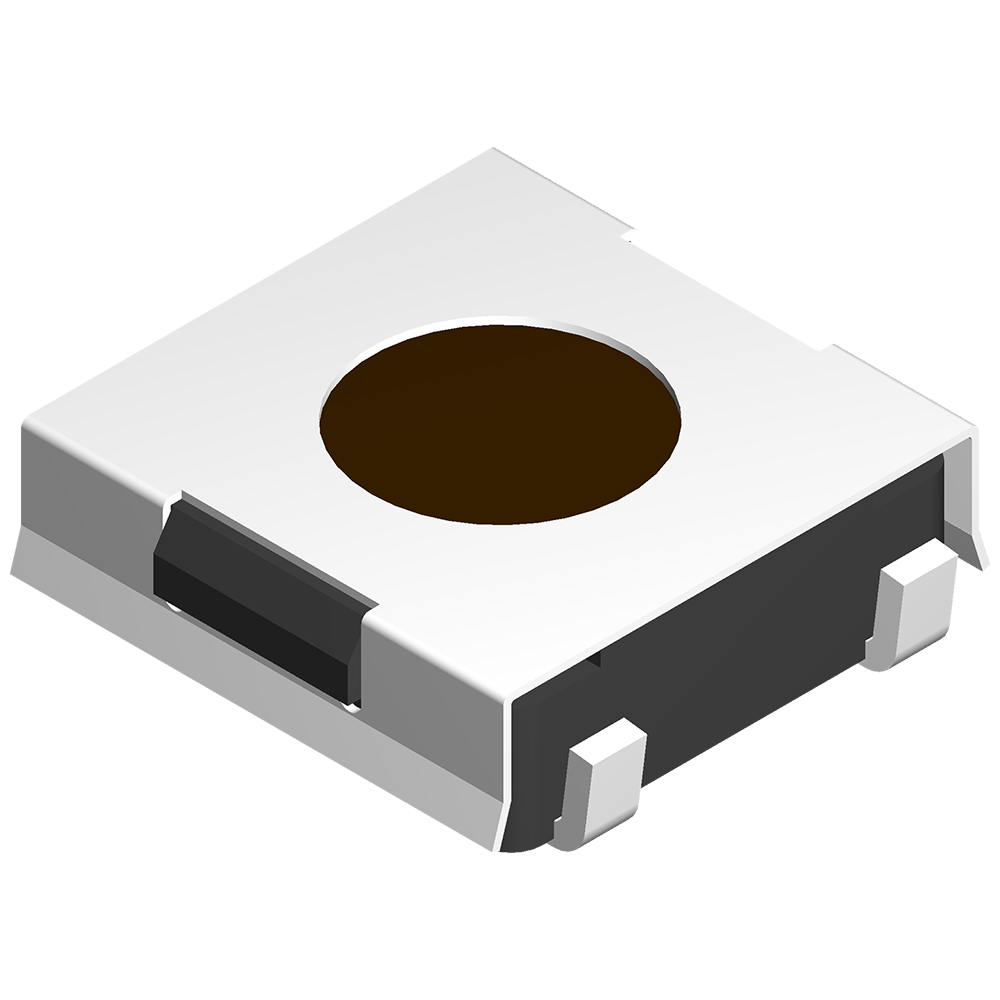

DTS(G)(L)(F)-6
Download Directory料號 | Operating Direction | H (mm) | Force(gf) | Stroke (mm) | Life cycles | Dustproof and Waterproof |
DTS□L-60K-□ | Vertical Push | 2 | 100 | 0.25 | 1000000 | - |
DTS□L-60N-□ | Vertical Push | 2 | 160 | 0.25 | 1000000 | - |
DTS□L-60R-□ | Vertical Push | 2 | 260 | 0.25 | 500000 | - |
DTS□L-60S-□ | Vertical Push | 2 | 320 | 0.25 | 300000 | - |
DTS□L-60Y-□ | Vertical Push | 2 | 520 | 0.25 | 300000 | - |
DTS□L-61K-□ | Vertical Push | 2.5 | 100 | 0.25 | 1000000 | - |
DTS□L-61N-□ | Vertical Push | 2.5 | 160 | 0.25 | 1000000 | - |
DTS□L-61R-□ | Vertical Push | 2.5 | 260 | 0.25 | 500000 | - |
DTS□L-61S-□ | Vertical Push | 2.5 | 320 | 0.25 | 300000 | - |
DTS□L-61Y-□ | Vertical Push | 2.5 | 520 | 0.25 | 300000 | - |
