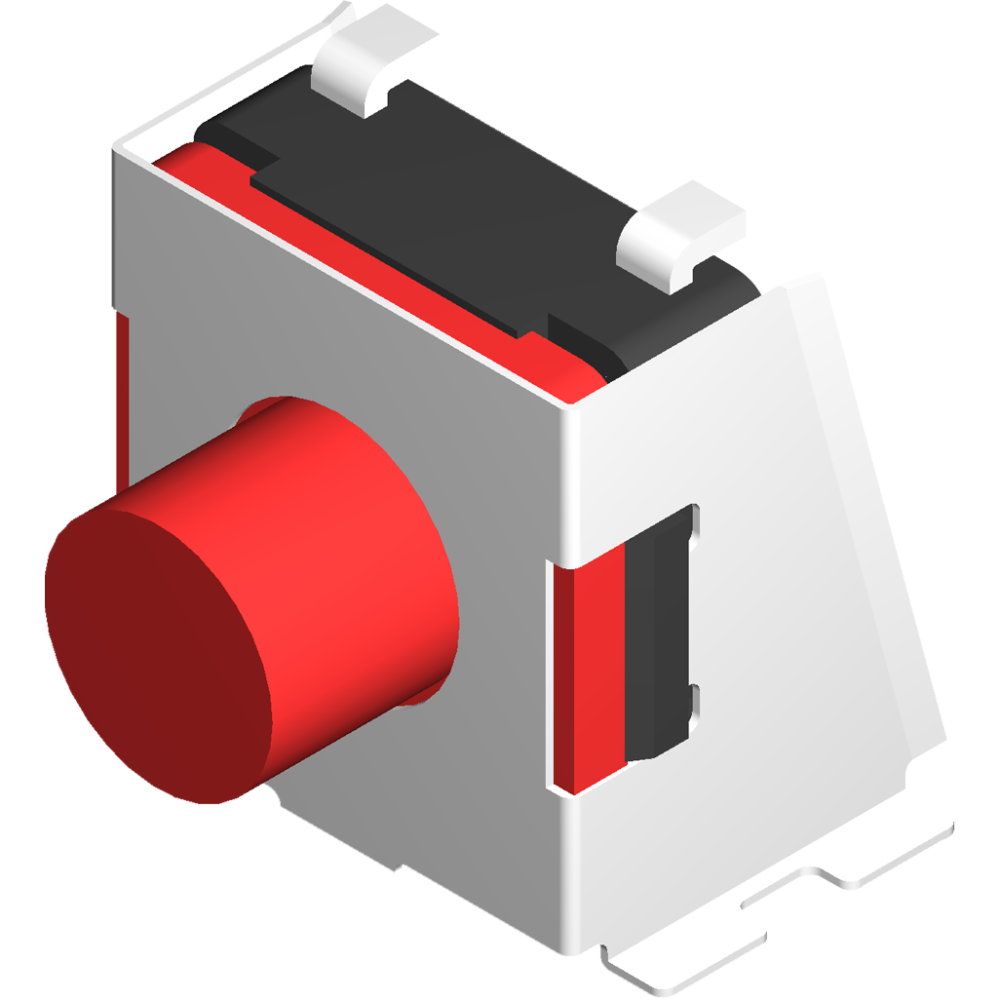

TA-6

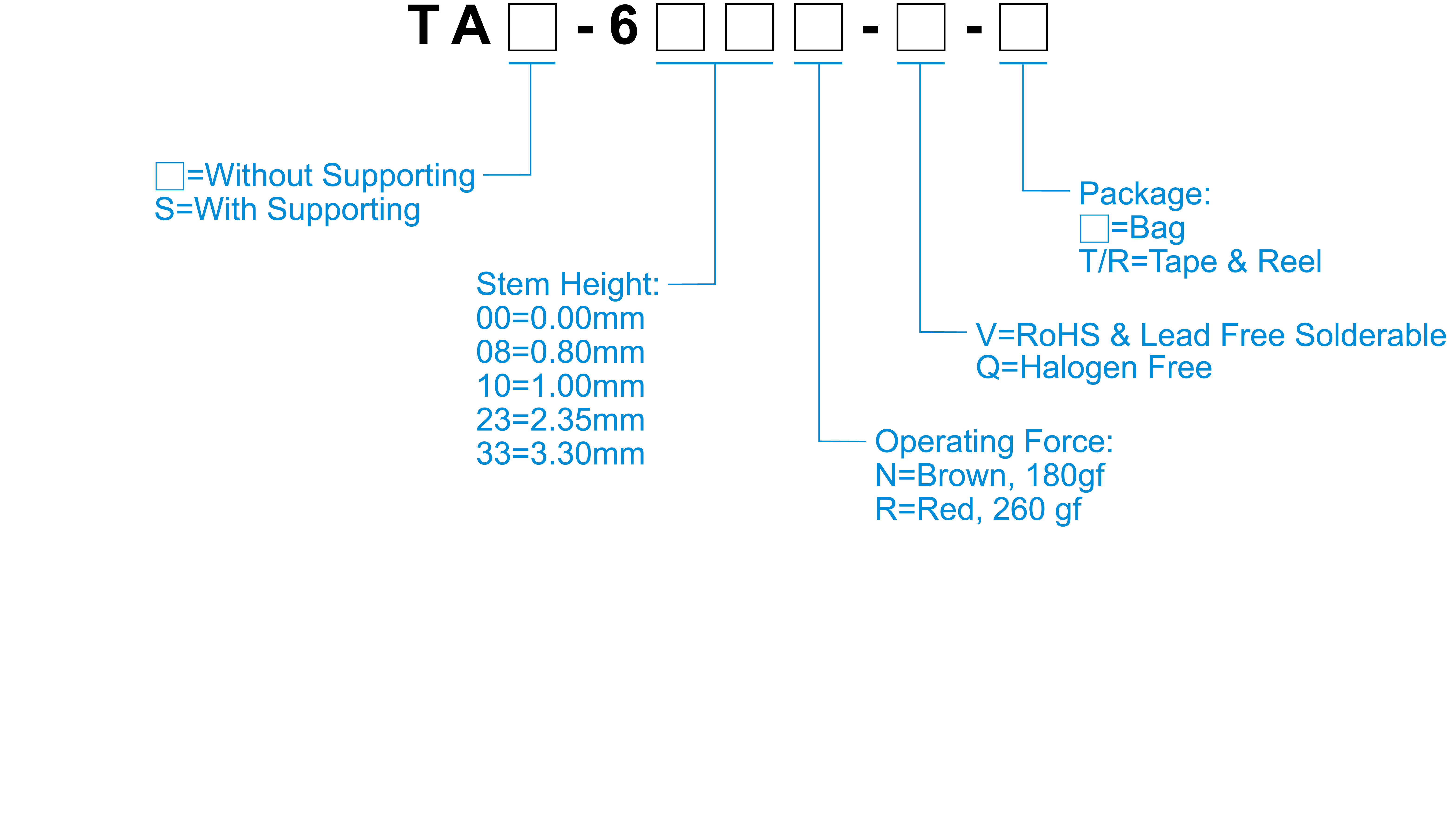

How to Order

Specification

Contact Rating 50mA, 12V DC
Contact Resistance 100 mΩ Max.
Insulation Resistance 100MΩ Min. 500V DC
Dielectric Strength 250V AC / 1 minute
Operating Force 180±50gf, Brown(N) 260±70gf, Red( R )
Travel 0.45mm
Operating Life 500,000 cycles
Operating Temp. -40°C~+85°C
Storage Temp. -40°C~+85°C

TA-6

Download Directory
料號 Operating Direction H (mm) Force(gf) Stroke (mm) Life cycles Dustproof and Waterproof
TA□-600N-□ Side Push 180 0.45 500000 -
TA□-600R-□ Side Push 260 0.45 500000 -
TA□-608N-□ Side Push 0.8 180 0.45 500000 -
TA□-608R-□ Side Push 0.8 260 0.45 500000 -
TA□-610N-□ Side Push 1 180 0.45 500000 -
TA□-610R-□ Side Push 1 260 0.45 500000 -
TA□-623N-□ Side Push 2.35 180 0.45 500000 -
TA□-623R-□ Side Push 2.35 260 0.45 500000 -
TA□-633N-□ Side Push 3.3 180 0.45 500000 -
TA□-633R-□ Side Push 3.3 260 0.45 500000 -
