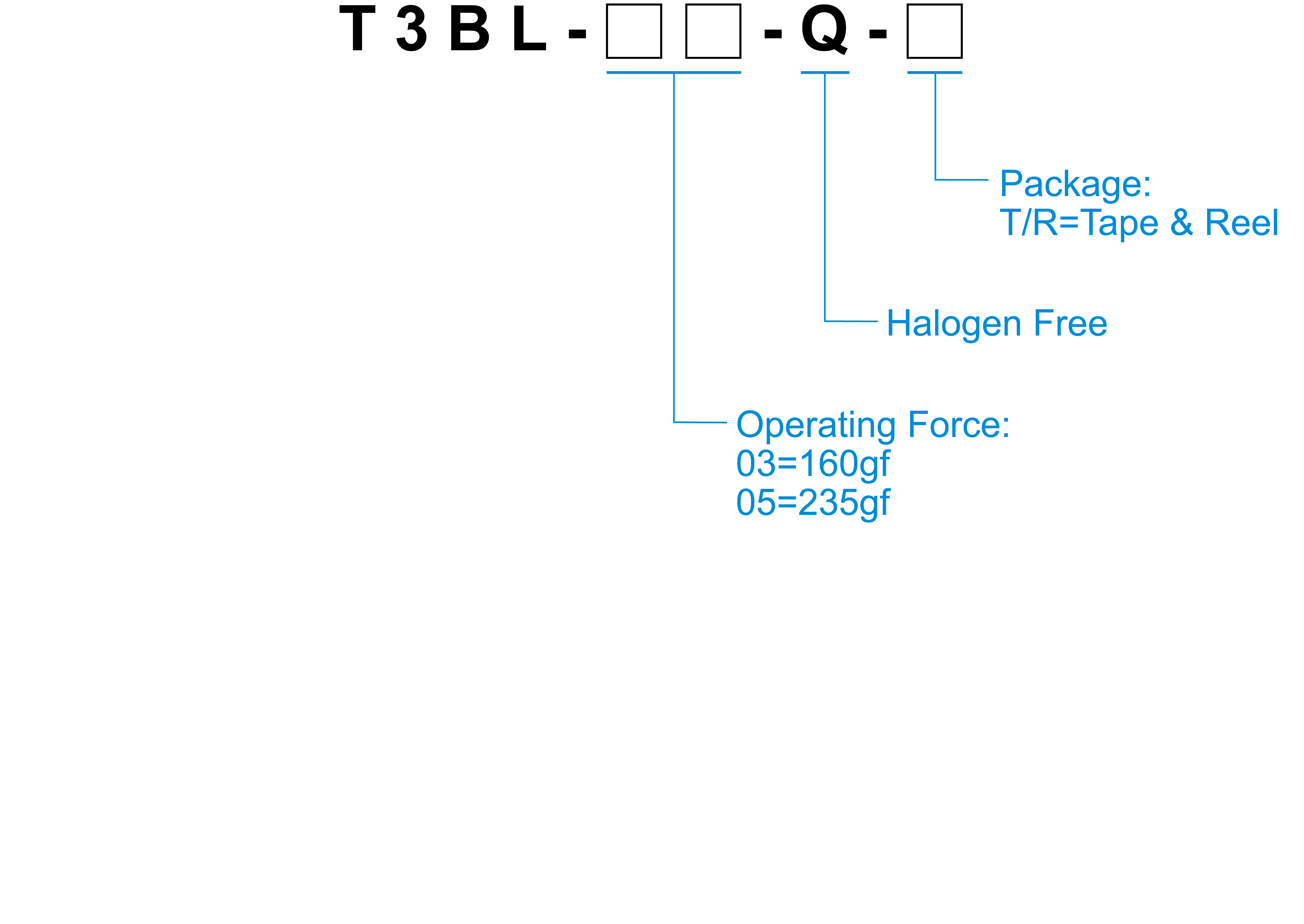

How to Order
Specification
| Contact Rating | 50mA, 12V DC |
|---|---|
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 100V DC |
| Dielectric Strength | 100V AC / 1 minute |
| Operating Force | 160±50gf / 235±60gf |
| Travel | 0.15mm |
| Operating Life | 50,000 cycles for 235gf 500,000 cycles for 160gf |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
T3BL
Download Directory| 料號 | Operating Direction | H (mm) | Force(gf) | Stroke (mm) | Life cycles | Dustproof and Waterproof |
| T3BL-03-Q | Vertical Push | 0.35 | 160 | 0.15 | 500000 | - |
| T3AL-05-Q | Vertical Push | 0.35 | 235 | 0.15 | 50000 | - |
