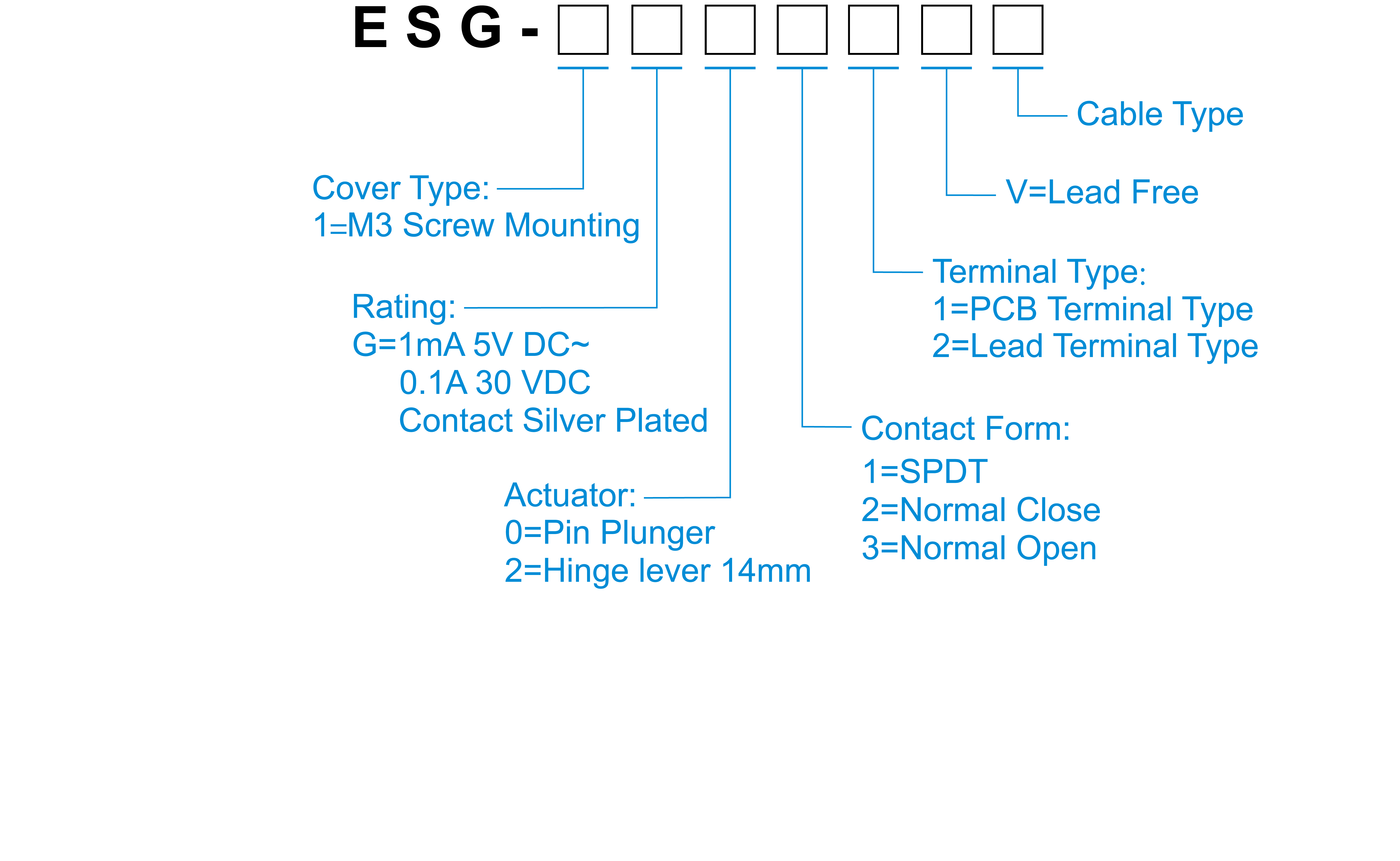

How to Order
Specification
| Contact Rating | 1mA, 5V DC 100mA, 30V DC |
|---|---|
| Contact Resistance | 1Ω Max. |
| Insulation Resistance | 100MΩ Min. |
| Dielectric Strength | 600V AC / 1 minute |
| Operating Force | 153gf Max. |
| Operating Position | NC：8.7±0.3mm NO：8.4±0.3mm |
| Operating Life | 10mA, 14 V DC 500,000 cycles 0.1A, 30V DC 200,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |
ESG
下载目录| 料號 | 操作方向 | 端子形状 | OP_1(mm) | OP_2(mm) | 防尘水 | |
| ESG-1G□□1V□ | 1P2T | For PC board | 153 | 8.4 | 8.7 | ● |
| ESG-1G□□2V□ | 1P2T | For Lead | 153 | 8.4 | 8.7 | ● |
