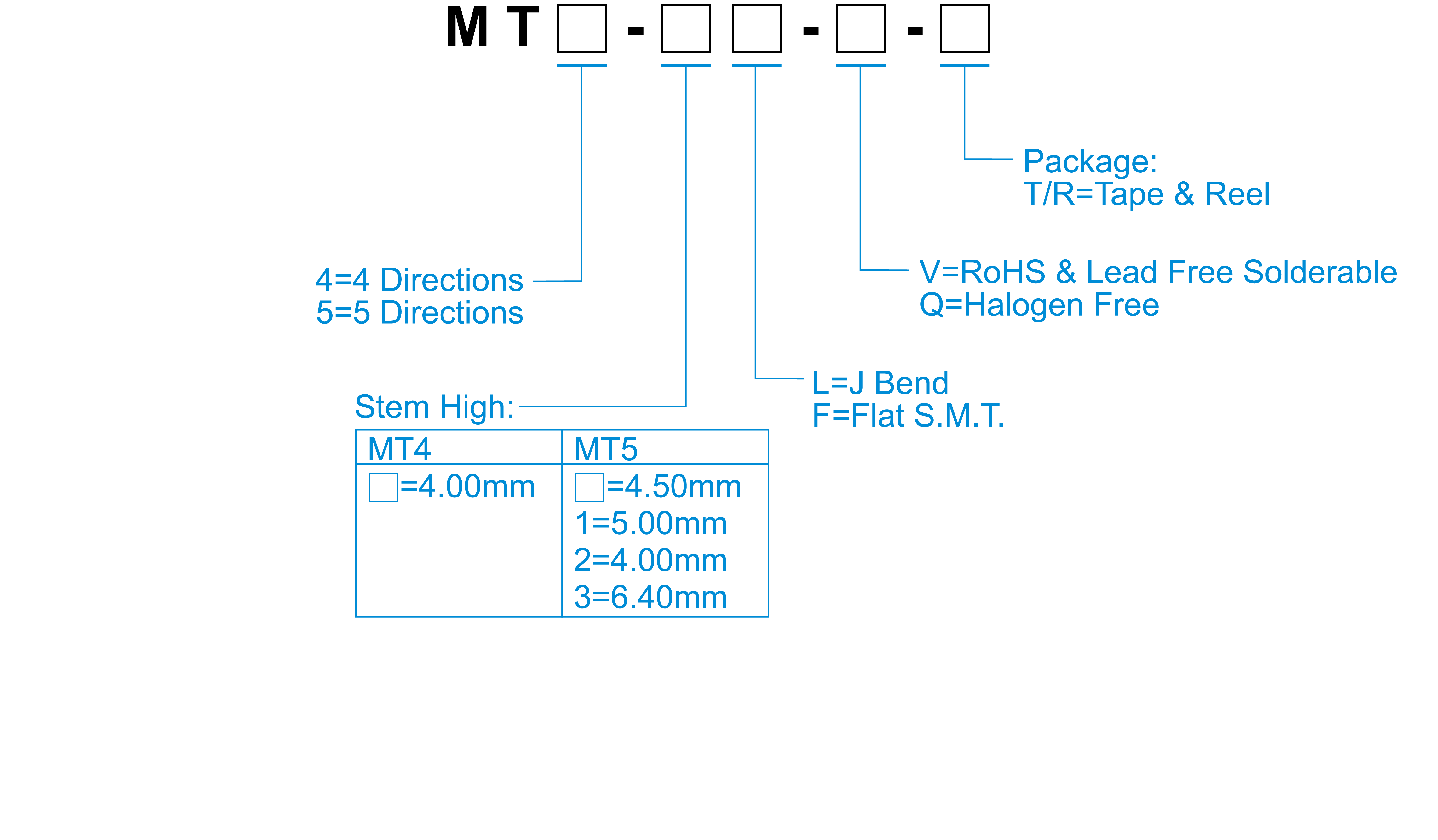

How to Order
Specification
| Contact Rating | 50mA, 12V DC |
|---|---|
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 100V DC |
| Dielectric Strength | 250V AC / 1 minute |
| Operating Force | 160gf, 4-direction 360gf, Center push |
| Travel | 0.25mm, 4-direction 0.15mm, Center push |
| Operating Life | 100,000 cycles |
| Operating Temp. | -40°C~+85°C |
| Storage Temp. | -40°C~+85°C |

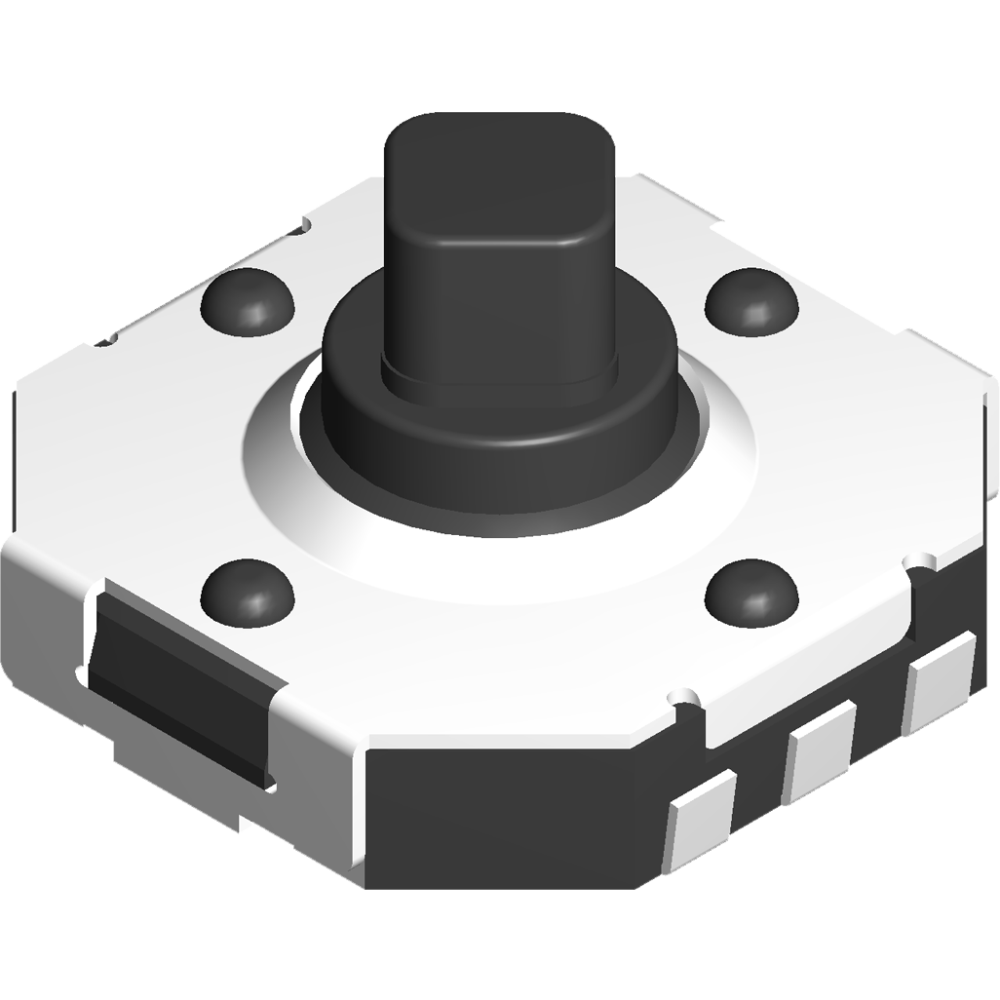

MT(4)(5)
下载目录| 料號 | 操作方向 | 行程 (mm) | 行程 | ||
| MT4-L-□ | Vertical and side push | DIP | 160, 4-direction / 360, Center push | - | 10ﾟ |
| MT4-F-□ | Vertical and side push | SMT | 160, 4-direction / 360, Center push | - | 10ﾟ |
| MT5-□L-□ | Vertical and side push | DIP | 160, 4-direction / 360, Center push | - | 10ﾟ |
| MT5-□F-□ | Vertical and side push | SMT | 160, 4-direction / 360, Center push | - | 10ﾟ |
